* UNSCREW 4 REAR Points.

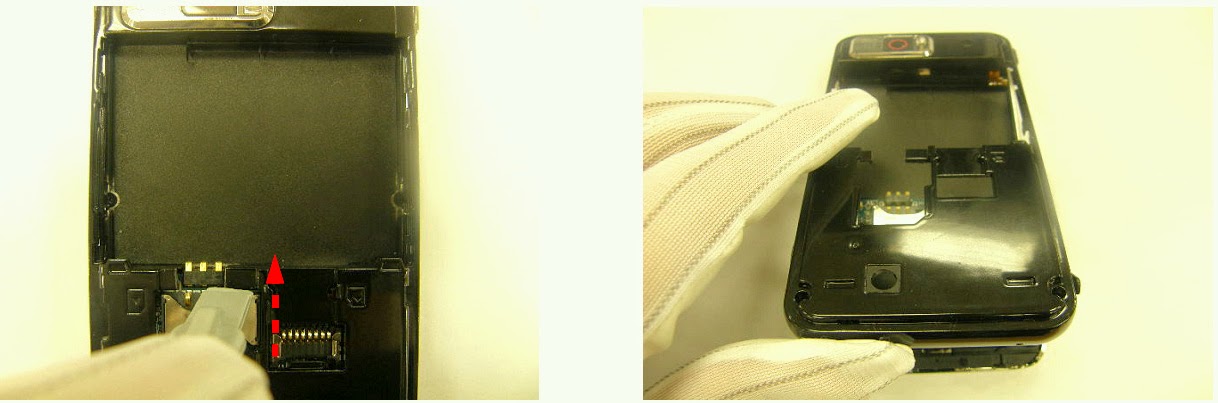

* Separate the REAR cover 1. Separate the rear case using a disassemble tool following indicated direction.
* Separate the REAR cover-2. Separate the REAR using a disassemble tool following indicated direction.
* Lift the REAR from the FRONT Ass`y. Separate the REAR from the FRONT Ass`y with care.
* UNSCREW PBA 2 Points.
* Separate GPS CONNECTOR. Separate GPS Connector from the PBA Connector with great care. (Be careful not to damage FPCB & nearby chipsets.)
* Separate Main FPCB CONNECTOR. Separate Main FPCB Connector from the PBA Connector with great care. (Be careful not to damage FPCB & nearby chipsets.)
* Separate LCD FPCB CONNECTOR. Separate LCD FPCB Connector from the PBA Connector with great care. (Be careful not to damage FPCB & nearby chipsets.)
* Separate VOLUME KEY FPCB. Separate Volume Key from PBA. (Be careful not to damage
VOLUME KEY FPCB)
* Separate TSP FPCB. Separate TSP FPCB from PBA not to tear FPCB with great care.
* Separate OJ (Optical Joystick) KEY FPCB. Separate OJ KEY with great care not to tear OJKEY FPCB.
* Remove Bracket Sheet. Remove Bracket sheet with great care not to damage GPS wire & MAIN FPCB.
* Separate SPK Bracket. Lift SPK Bracket from FRONT Ass`y.
* UNSCREW FRONT 2 Points.
* Separate FRONT. Separate FRONT from FRONT Ass`y following indicated direction.
* Separate Key Pad. Separate Key Pad from FRONT Ass`y.
* Separate OJ (Optical Joystic) KEY FPCB. Separate FPCB from FRONT Ass`y using guide hole.
* Separate TSP Module. Separate TSP Module from PBA with care.
* Separate LCD from TSP. Separate LCD from TSP with great care not to damage TSP.
Reverse the processes to re-assemble.
