HOW TO DISASSEMBLE SGH-480F - SAMSUNG GSM MOBILE PHONE

$
0
0
DISASSEMBLE
Unscrew the REAR at the four points.
Disassemble the IF cover and SD card cover.
Disassemble the Rear from the bottom side to the upper side.

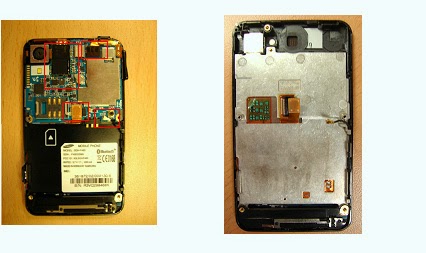

Disassemble the touch-key connector, antenna cable, SPK connector, camera connector.
Unscrew the screw.
Disassemble the PBA from the FRONT ASS'Y

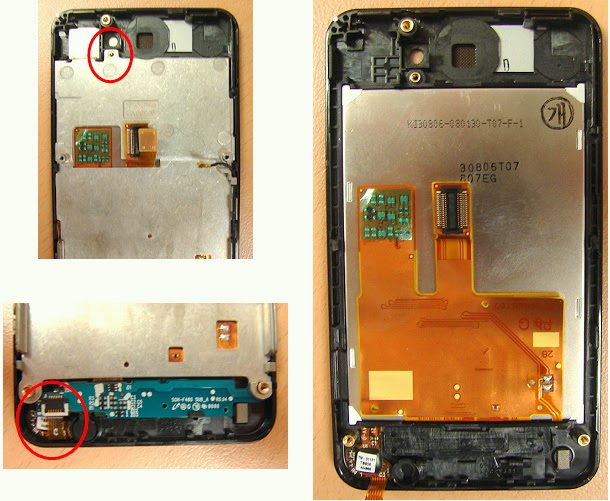

Remove the antenna and antenna cable.
Remove the SPK ass'y and camera
Remove the screw

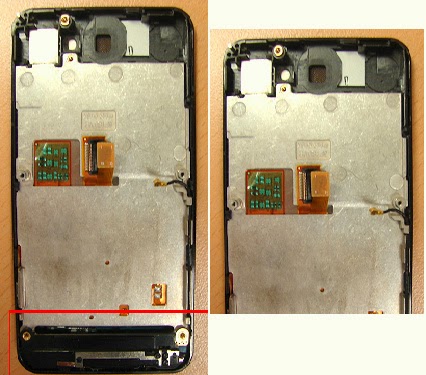

Disassemble the touch key FPCB
Remove the bracket.
