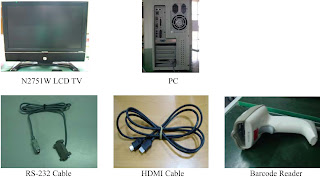

Equipment Needed
- N2751W LCD TV
- PC
- RS-232 cable
- Barcode Reader
- HDMI Cable.

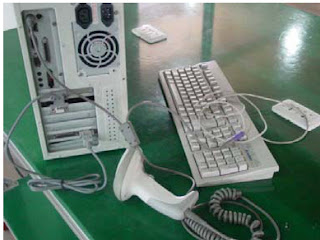

- Barcode Reader connects with keyboard and PC keyboard port.
- Connect DDC Card and N2751W LCD TV with HDMI Cable.
- Connect Power Cord to N2751W LCD TV.

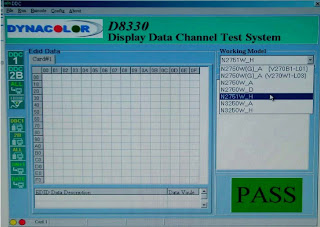

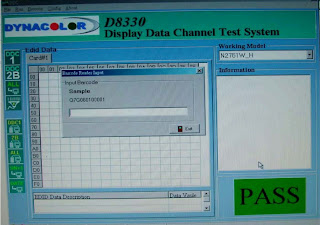

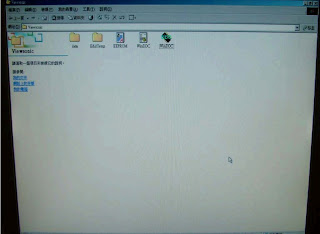

- Choose model number then press “ENTER” key.

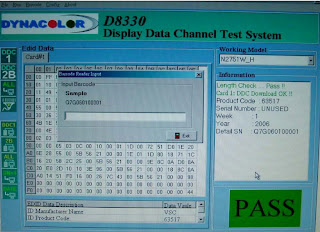

- Press “ENTER” key, then the successful picture is as follows. “DDC DOWNLOED OK.
- Exit program.
FIRMWARE UPGRADE
When you receive the returned LCD TV, please check whether the firmware version is the latest. If not, please do the following procedures to upgrade it to the latest version.Equipment Needed
N2751W LCD TV
- Fixture for Firmware Upgrade
- VGA Cable
- PC (Personal Computer)
- Firmware Upgrade Program
- One additional LCD TV for checking the program execution.
- Installing the USB device driver. The USB driver will be upgraded if necessary.

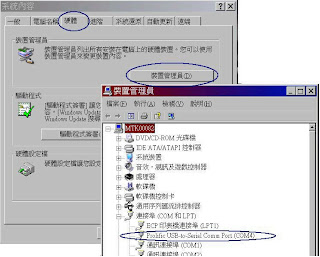

- Insert the USB to RS232 Download Board to PC’s USB port. Then you can found the USB Device detected and follow Windows comments to finish the Driver install.

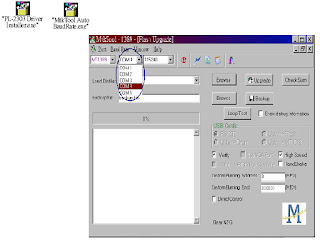

- Execute the Mtktool to start download the file. The Mtktool program will be upgraded if necessary.
- Select Platform : MT8105 , MT1389 or MT8205.

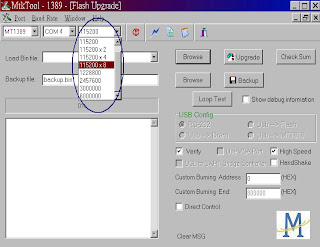

- Select Baud Rate. 115200x 8 (Suggestion).

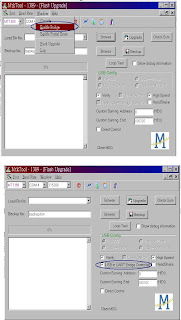

- Enable the USB Bridge.

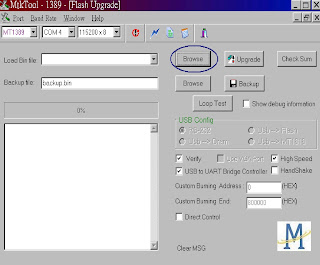

- Browsing the File to download.

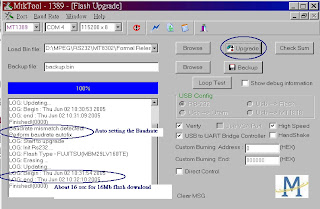

- Press Upgrade to download file.
You can slow down the baud rate if some Flash memory can not works properly in high-speed download.
