ATS-909X FM / MW / LW / SW PLL SYNTHESIZED RECEIVER_Circuit Diagram & Troubleshooting
SCHEMATICS [CLICK ON THE PICTURES TO MAGNIFY]

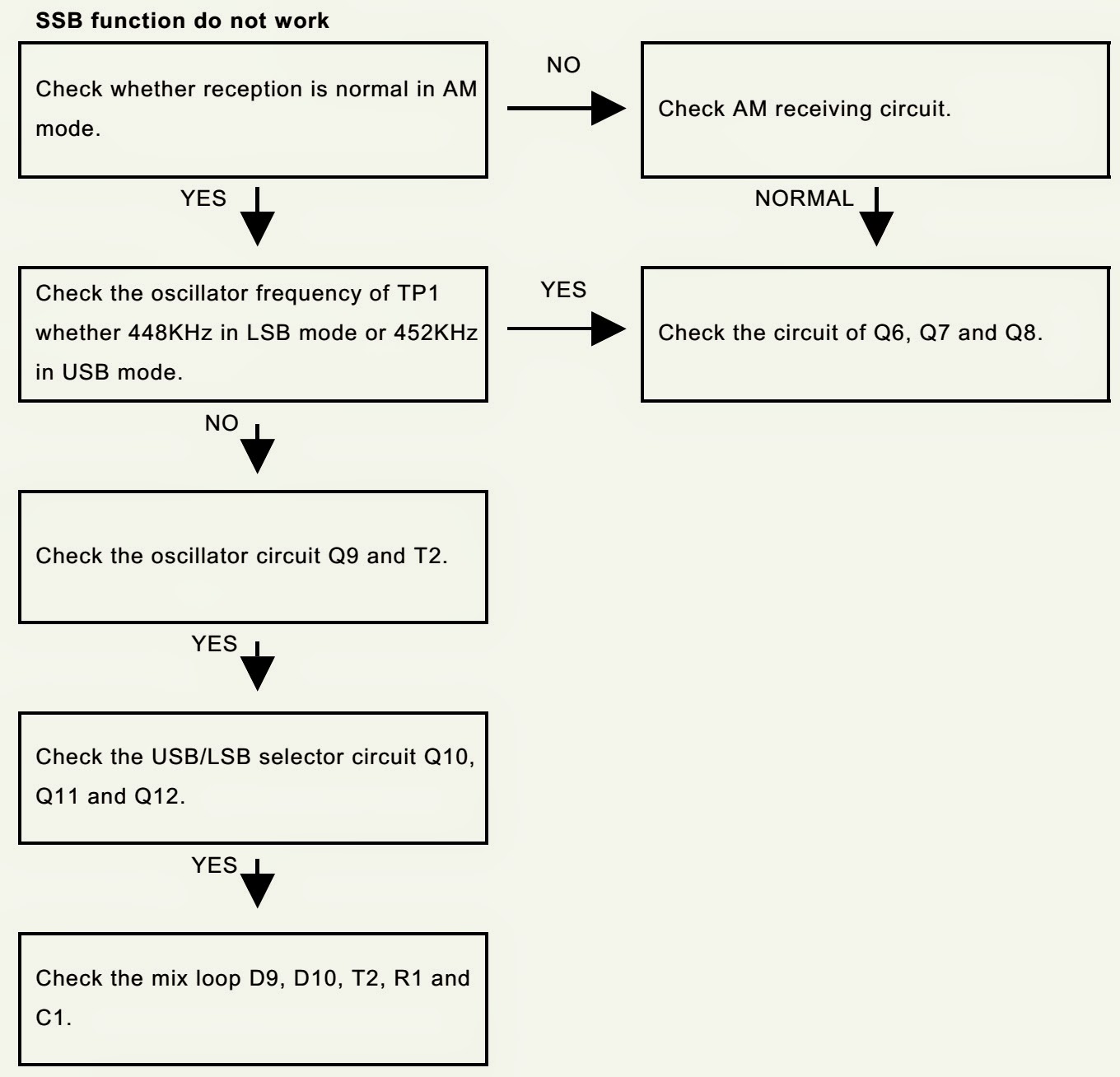

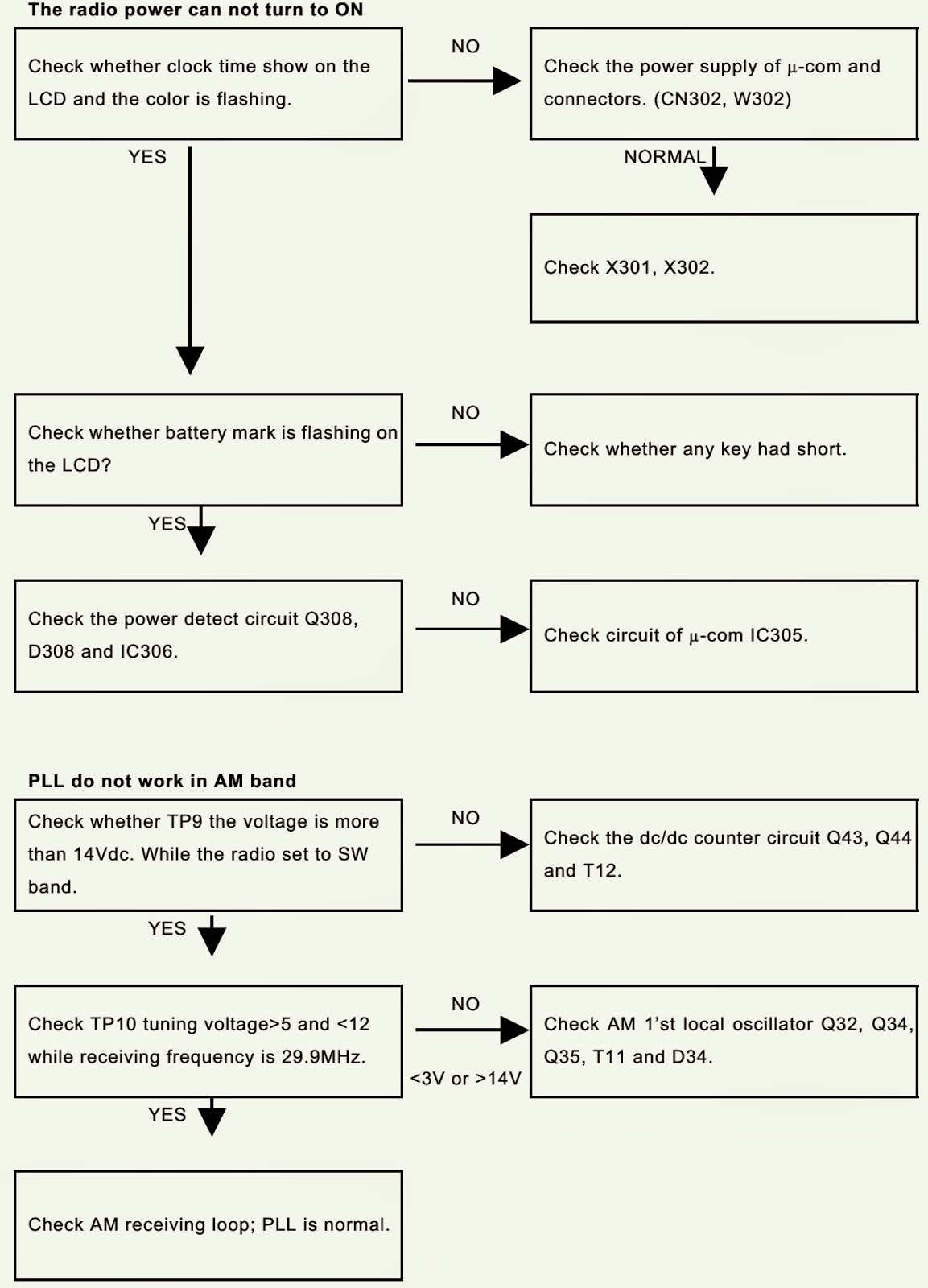

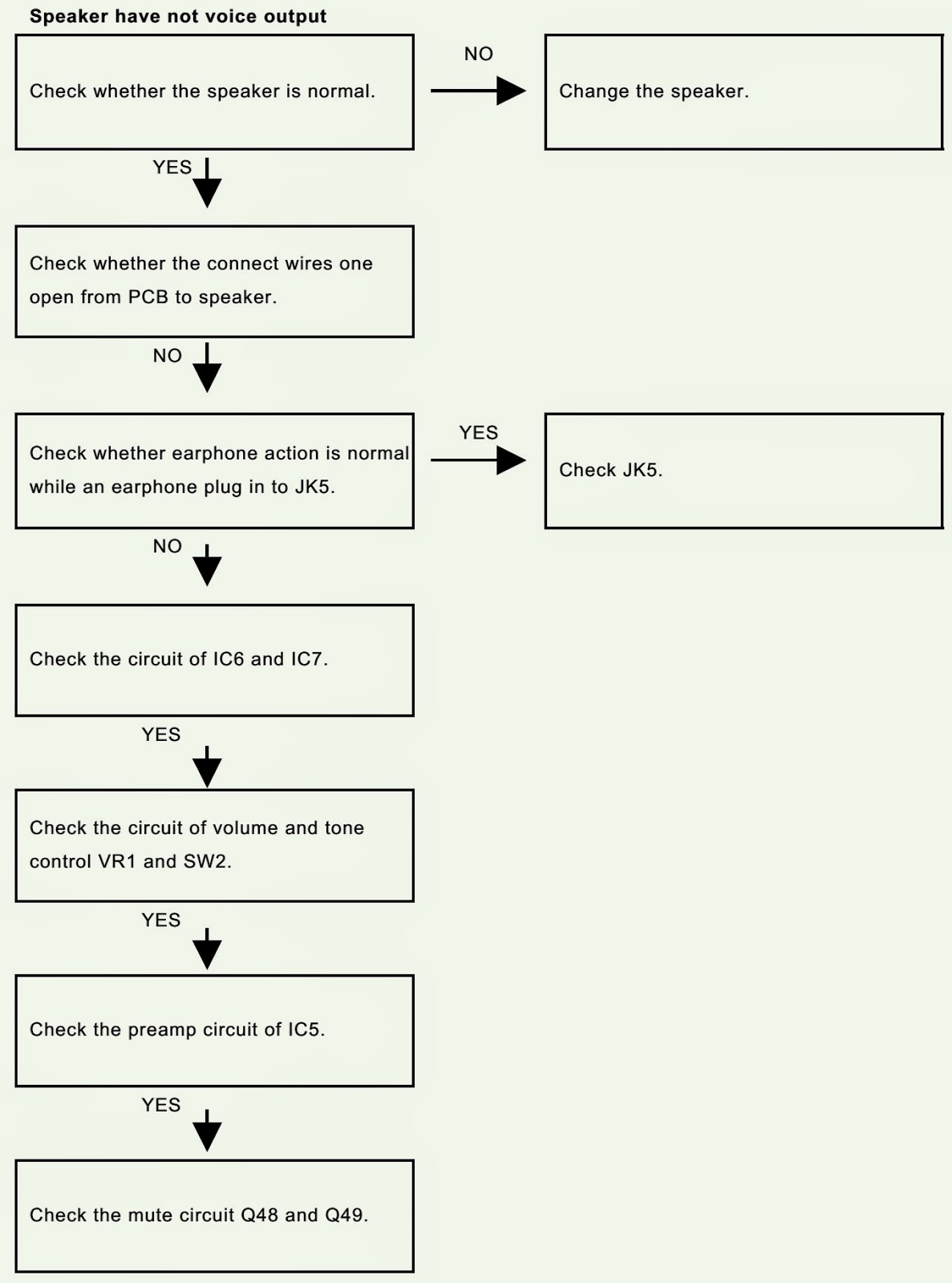

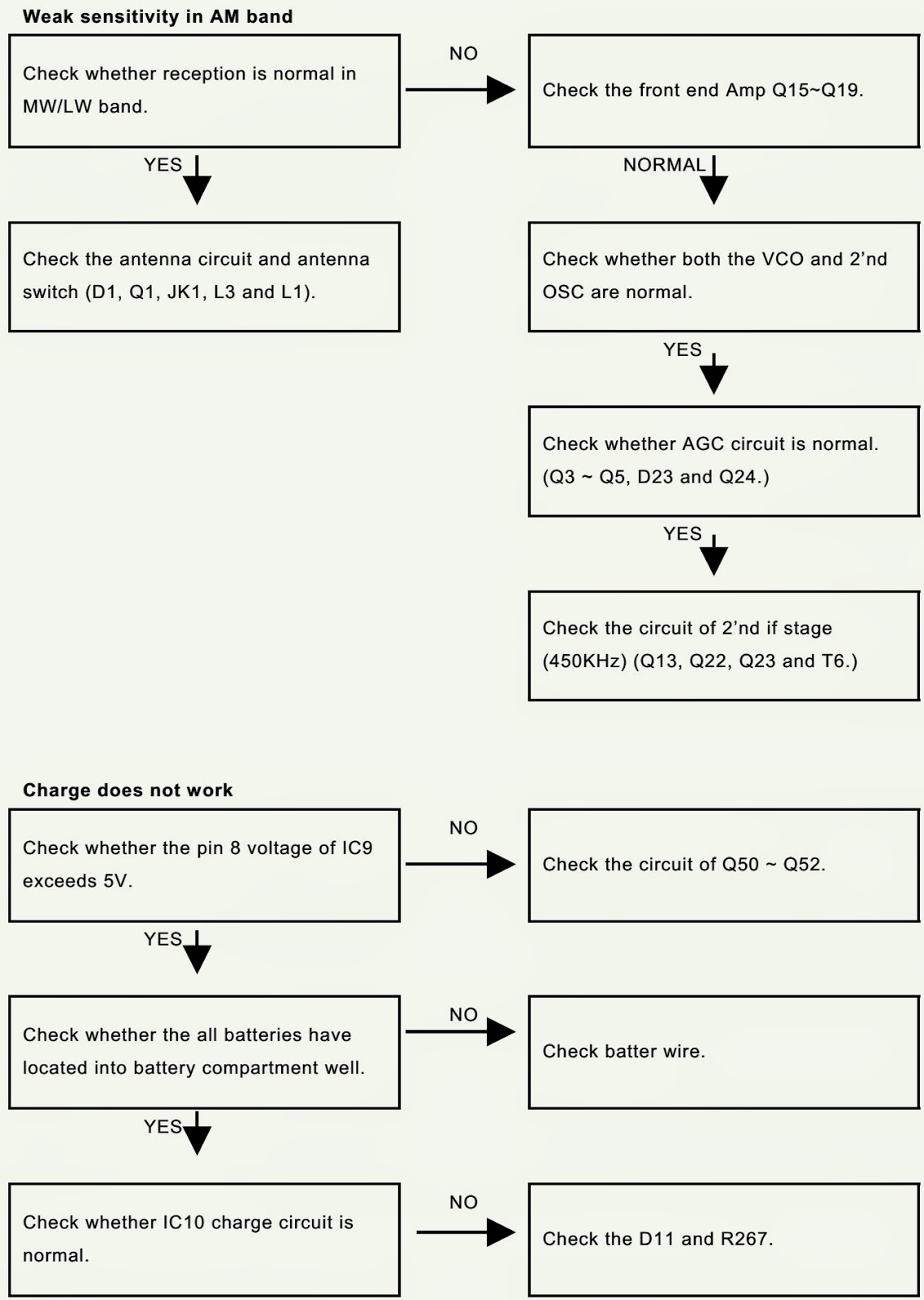

TROUBLESHOOTING
↧
