Disassembley_connector Voltages_boards layout.
![]()

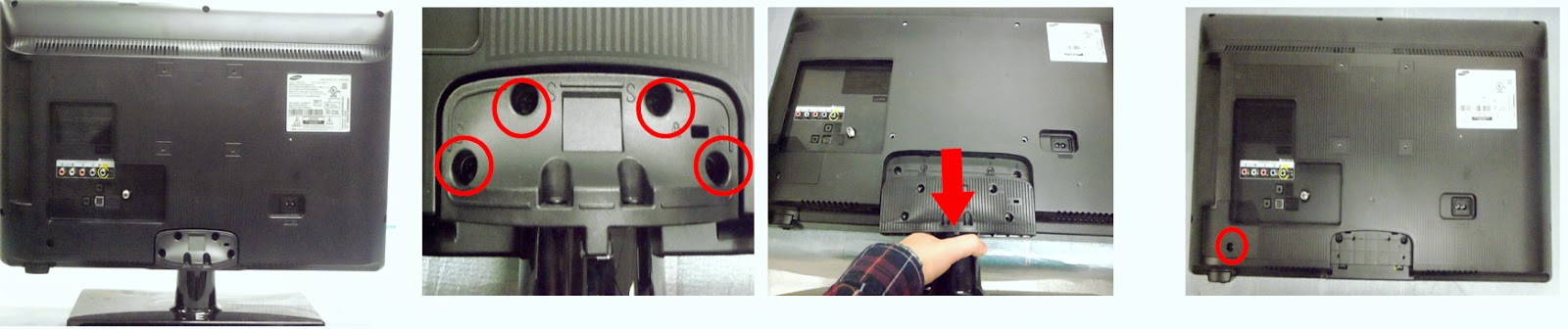

DISASSEMBLE
* Place monitor face down on cushioned table
![]()
![]()
![]()
![]()
![]()
![]()
* Place monitor face down on cushioned table
* Remove 4 screws from the stand.
* Remove stand.
* Remove the 1 screw of cover jack.
* Remove cover jack.
* Disconnect the function Assy. Cable.
* Remove the screws of rear-cover. [Not removing the connector can cause Damage to the PC/Connector]
* Remove the rear cover.

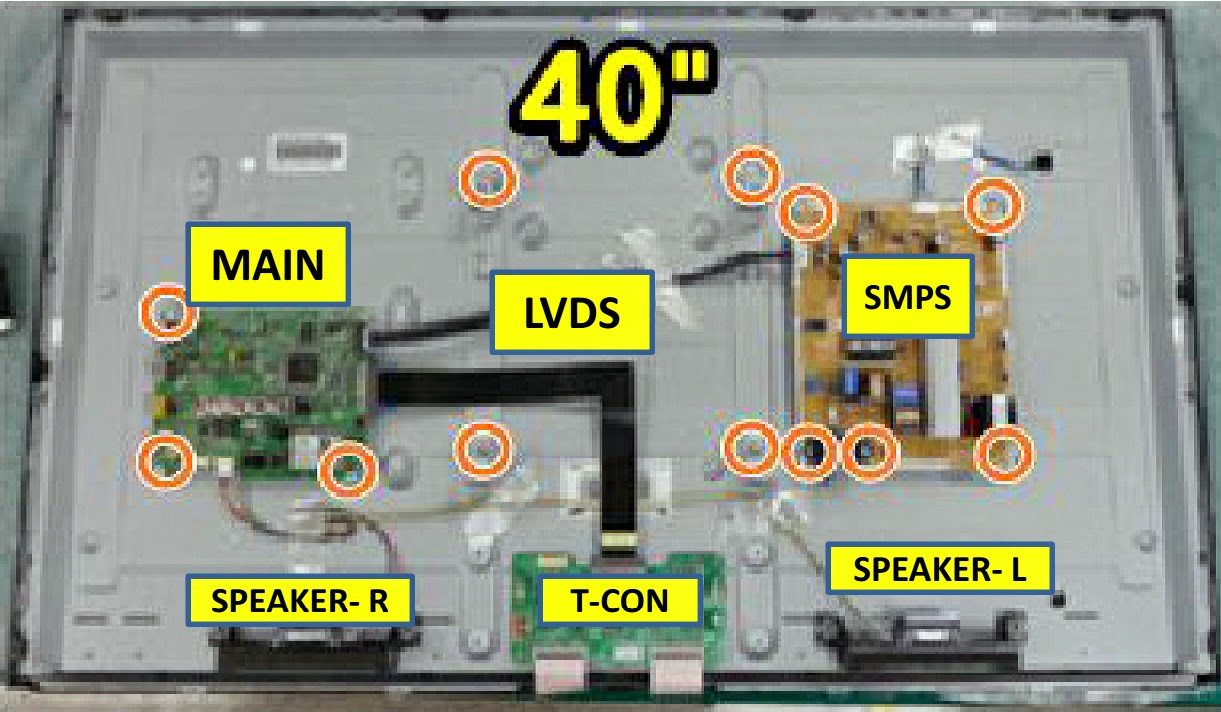

LAYOUT

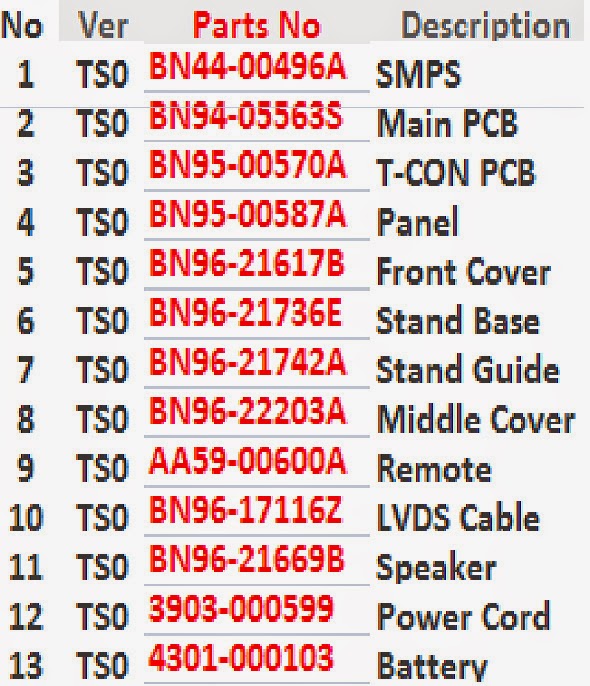

BOARDS AND PART NUMBERS

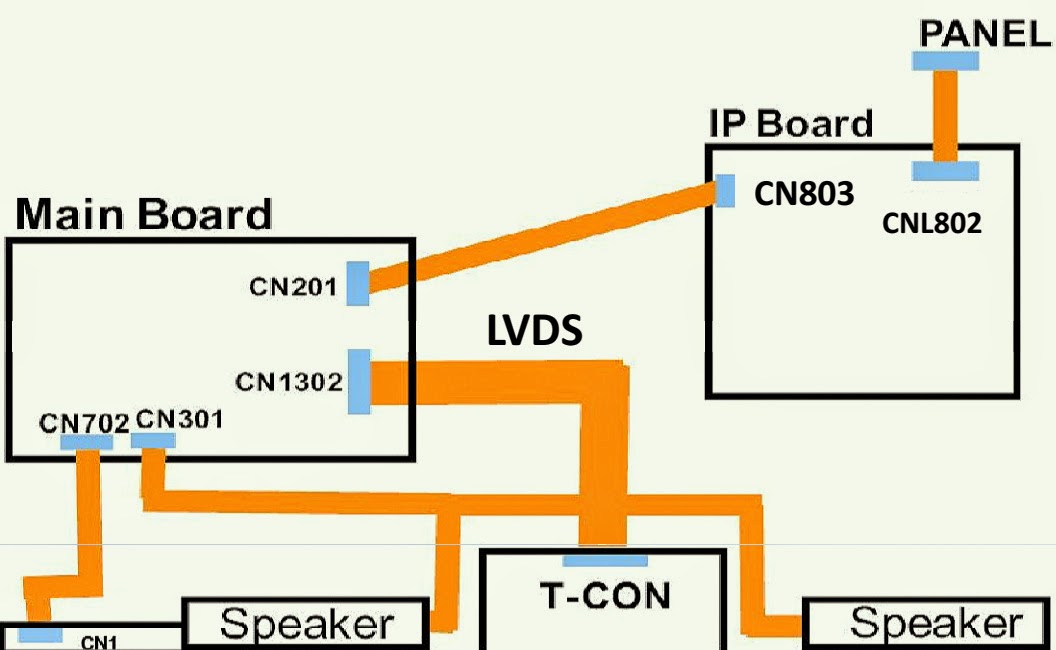

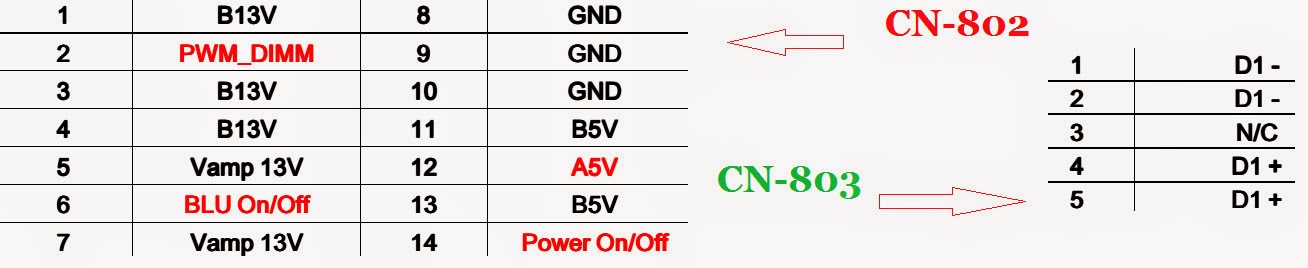

CN803 IP SMPS to /fro MAIN BOARD connector voltages.
FIRMWARE: 6/4/2012 Version 1012.3 -2012 LED TV X9N Full HD Firmware (T-MX9FAUSC_1012.3)
“Makes better picture quality and solves sound noise with 'Auto Volume On'.”
Avail on GSPN or Samsung,Com Always check for latest update.
