SAMSUNG UE40D8000Y*_ UE46D8000Y* _ UE55D8000Y* _ UE60D8000Y* _ LED LCD TV _ Disassemble Procedure.

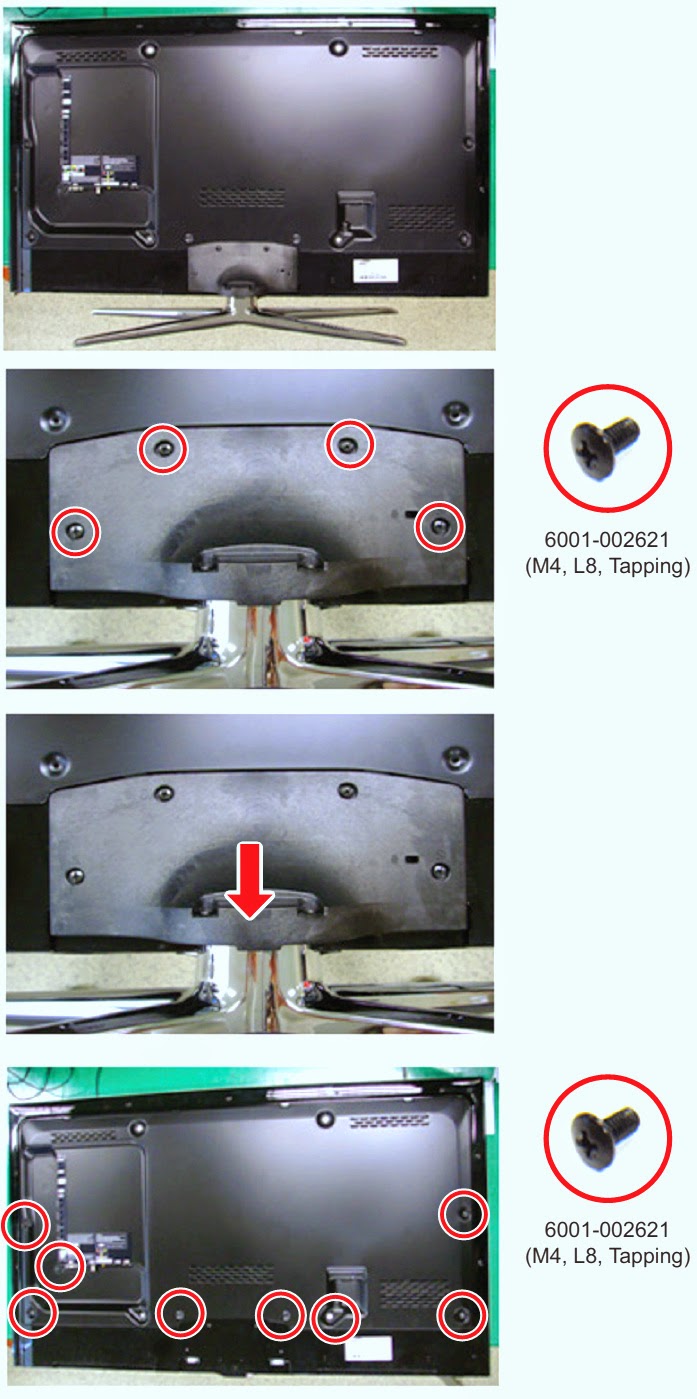

* Place TV faces down on cushioned table. Remove screws from the Stand. Remove stand.
* Remove the screws of rear-cover.
* Lift up and remove the rear-cover. * Caution: Be careful when you lift up the rear-cover, It’s really sharp.
* Remove the screws of middle-cover.

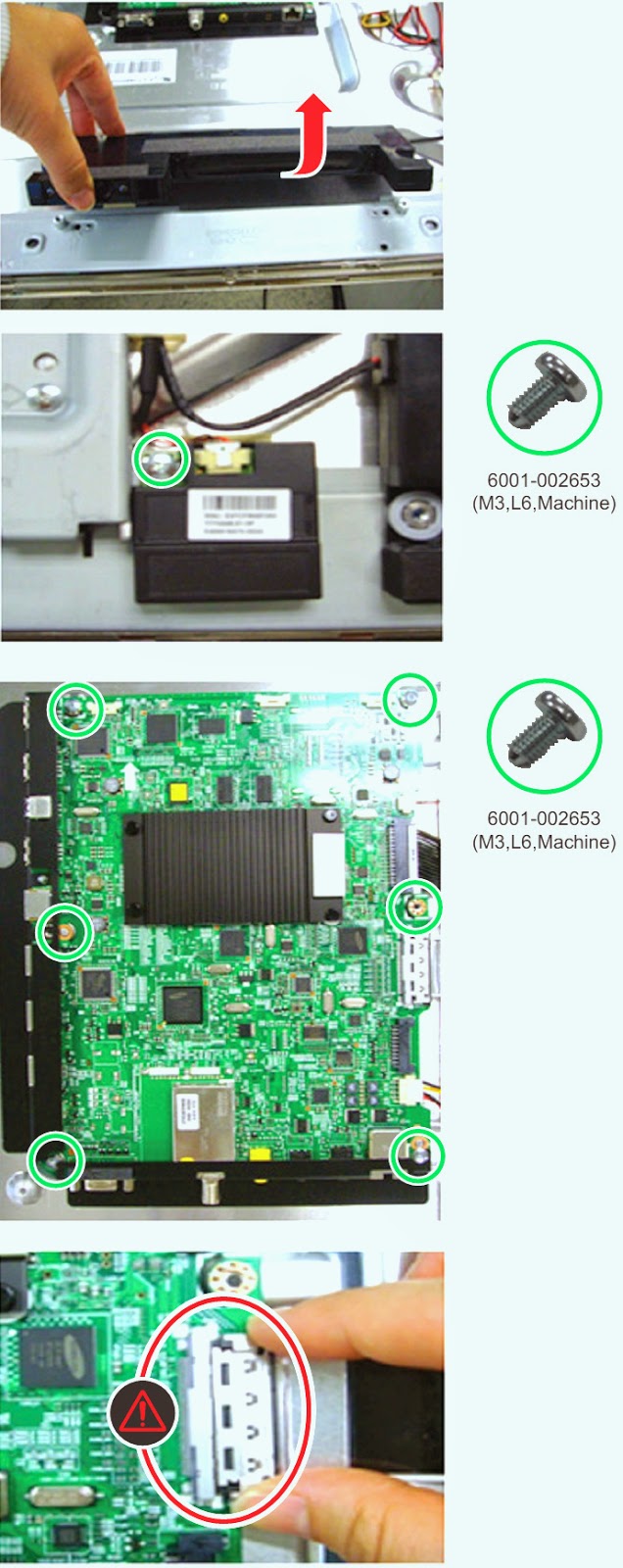

* Lift up and remove the middle-cover. Caution: Remove the function cable, 3D emitter cable and deco cable before removing the middle cover.
* Remove the Speakers(R/L)
* Remove the Wi-Fi Module.

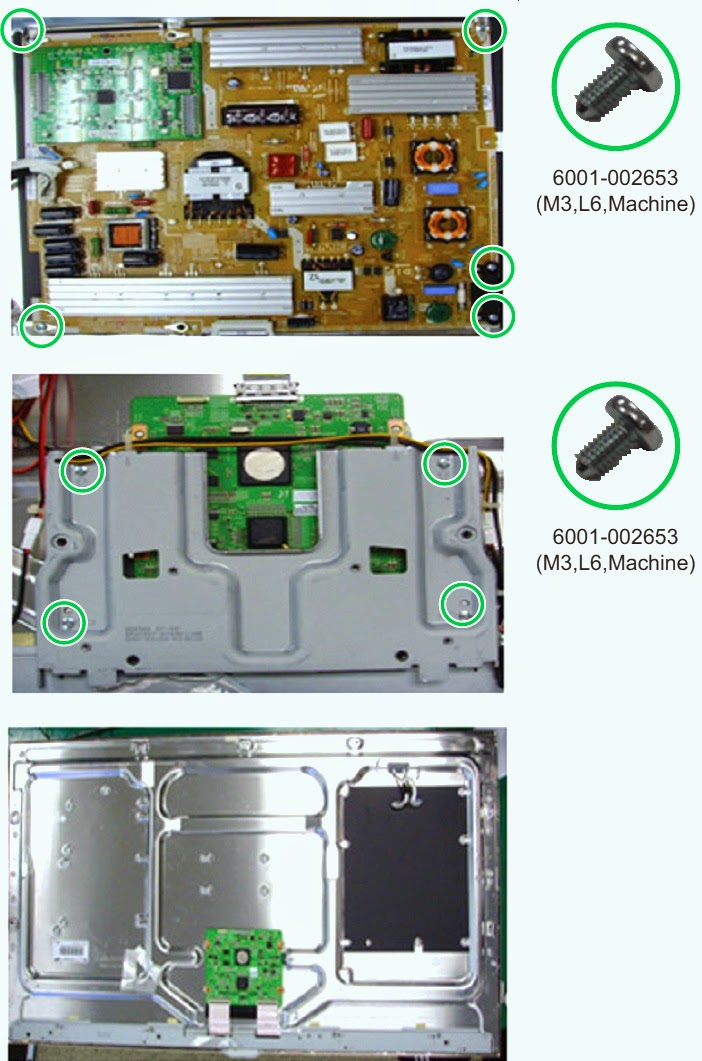

* Remove the screws of Main Board (Disconnect all cable connectors before removing any board.)
* Remove the screws of IP board.- Remove the IP board
* Remove the T-CON Bracket.
