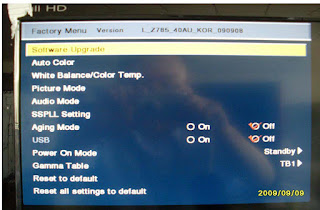

TO ENTER SERVICE MODE
- Press 'Menu'
- Input {8893}.
- Press "OK". The system will be in Factory mode {Service Mode}
- To "Exit" from this mode, press 'Exit' button on the remote control.
MEASUREMENTS AND ADJUSTMENTS

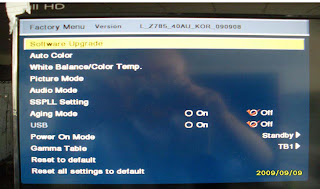

Software Update

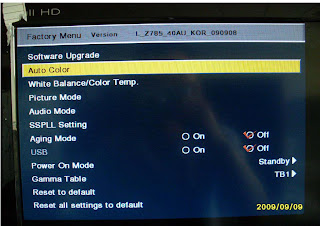

Auto Color

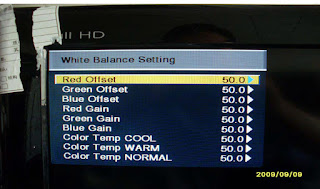

White balance / Color temperature

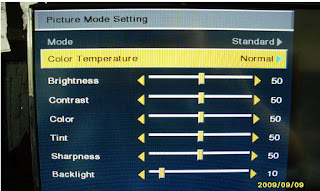

Picture Mode

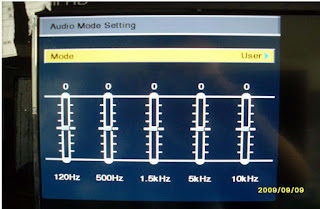

Audio Mode

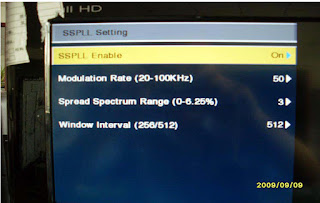

SSPLL Setting

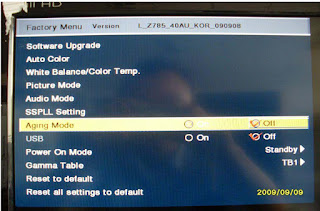

Aging Mode

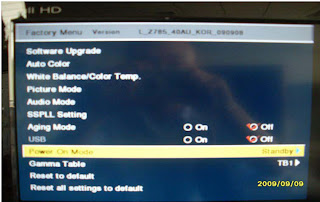

Power On Mode

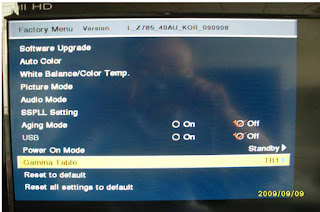

Gamma Table

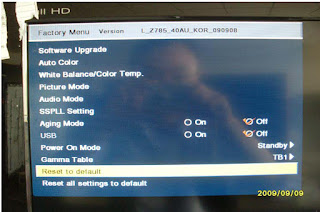

Reset to Default

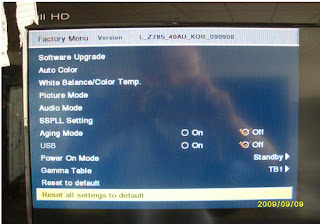

Reset all settings to Default.

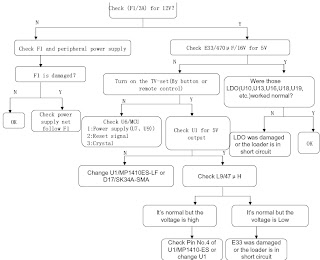

POWER SUPPLY BOARD FAILURE CHECK TABLE
Click on image.
Right click on the enlarged image, save image as, to a folder(My
Pictures). View it in ‘Picasa’ picture
viewer. There you can enlarge it
more. Download ‘Picasa-3’ by Google
site, and install it to your system.
It’s a free software from
Google.
For more details about dis-assembly and panel faults, visit this site
