Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These components are sensitive to, and easily affected by, static electricity. If such static electricity is high voltage, components can be damaged, and for that reason components should be handled with care.
DISASSEMBLY AND ASSEMBLY FOR MECHANISM DECK (CDM-H1803)
* Disassemble the Cover Guide Disc.
* Disassemble the Loading FFC from the Main PCB Assy.
Turn the Gear in OPEN direction as shown in Figure to take out the Tray Loading Assy in 3 direction.
Turn the Gear in OPEN direction as shown in Figure to take out the Tray Loading Assy in 3 direction.
* Pull up the Holder 1 to completely disassemble the Tray Loading Assy from the Base Main Assy
* Loosen the screw to pull up and disassemble the Tray Disc
* Loosen the screw to pull up and disassemble the Gear Tray CAM
* Disassemble the Gear Tray, Tray Motor Assy and Loading PCB Assy from the Tray Loading.
* Disassemble the Harness Cable from the Base Main.

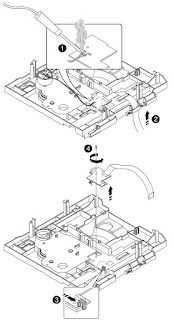

* Disassemble the Base Sled Assy from the Base Main by referring to Figure.
* Push the Guide UD in direction 1 to disassemble it from the Base Main.
* Disassemble each gear part, Clamp Disc, Clamp Magnet and Cover Plate from the Base Main.
* Disassemble the Loading Motor Assy by being careful of the hook on the surface of the Base Main.
