LC-48CFG4042E, LC-49CFG4041E, LC-49CFE4042E – Sharp LCD TV-service mode, service mode adjustments, software update, Panel and EMC setting and more
MSD3463 Factory Menu Specification
How to Enter Factory Menu
Press the RC buttons in this sequence: “Menu 1 1 4 7” to enter the factory menu.
INTRODUCTION
SHIPPING INIT: TV Initialization to set default TV parameters. Designed for Shipment.
AGING MODE: TV aging mode switch.
ADC ADJUST: Change ADC parameters
PICTURE SETTING: Change Picture Setting
SOUND SETTING: Change Sound Setting
GENERAL SETTING: Some other settings usually used, and also for Debug.
PANNEL SETTING: Change panel parameters like BitMap, ODD.EVEN and Etc.
EMC SETTING: Some settings may affect EMC.
SYSTEM INFO: Display system information.
BOARD INIT: Factory reset.
SW UPGRADE: Software update item.
ADC ADJUST & WHITE BALANCE AUTO ADJUST
It’s for adjusting the YPBPR and PC color. Press key “right” or “ok” to enter the subpage.
Auto Adjust: Start to auto color to get ADC value.
Source: Set source for adjusting
R-Gain: Display current ADC R value.
G-Gain: Display current ADC G value.
B-Gain: Display current ADC B value.
R-Offset: Display current ADC R offset value.
G-Offset: Display current ADC G offset value.
B-Offset: Display current ADC B offset value
Reset: Reset to default values.
Source: Choose source
Picture Mode: Change picture mode parameters
Picture Curve: Picture mode parameter curve.
WB Adjust: White Balance parameter setting
Over scan: Over scan setting
PQ Advanced: For PQ Adjustment.
Gamma: Preset several Gamma Curves, for PQ debug.
DLC: Preset several Curves, for PQ debug.
HDMI RGB Range: Change Limit range or Full Range.
PICTURE MODE
Source: Choose sources
Picture Mode: Select picture mode which is same with main menu.
Contrast: Adjust contrast which is same with main menu.
Brightness: Adjust brightness which is same with main menu.
Color: Adjust Color which is same with main menu.
Sharpness: Adjust Sharpness which is same with main menu.
Tint: Adjust tint which is same with main menu.
PICTURE CURVE
Adjust the real value of main menu from 0 to 100
Source: Choose source
Contrast: Adjust the real contrast for main menu from OSD 0 to OSD 100.
Brightness: Adjust the real brightness for main menu from OSD 0 to OSD 100.
Color: Adjust the real color for main menu from OSD 0 to OSD 100.
Sharpness: Adjust the real sharpness for main menu from OSD 0 to OSD 100.
Tint: Adjust the real tint for main menu from OSD 0 to OSD 100.
CONTRAST
Contrast-0: The real value of main menu contrast OSD 0
Contrast-25: The real value of main menu contrast OSD 25
Contrast-50: The real value of main menu contrast OSD 50
Contrast-75: The real value of main menu contrast OSD 75
Contrast-100: The real value of main menu contrast OSD 100
The Brightness, Color, Sharpness, Tint are same with the contrast.
WB [White Balance] ADJUST
White-Balance Adjustment
This page only for current source White Balance Adjustment. Different source may have different values. There are Warm, Cool, Normal modes and save every separate source. We can change the R-GAIN, G-GAIN, B-GAIN, R-OFFSET, G-OFFSET, B-OFFSET.
SYNC ALL: SYNC the white balance of the current source to all other sources.
White Balance
Load 80% White pattern from signal generator
Enter Factory Menu by pressing MENU + 1147
Choose 3 PICTURE SETTING
Choose 3 WB ADJUST
Change 0 SOURCE to HDMI
In 1 COLOUR TEMP choose Warm/Normal/Cold
Change R-GAIN/G-GAIN/B-GAIN to meet specification
OVERSCAN
This page can adjust over scan.
Note: Over scan should check with every timing.
PQ ADVANCED
PQ Adjustment Page
Adjust luminance, Colors, peaking, NR and etc.

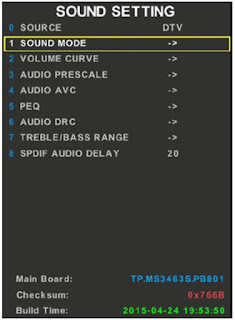

SOUND
Source: Choose source
Sound Mode: BASS, TREBLE, EQ-Settings.
Volume Curve: Adjust volume curve.
Audio Pre-scale: Adjust the power of current source.
Audio AVC: For Software Designer Only
PEQ: For Software Designer Only
Audio DRC: For Software Designer Only
Treble/Bass Range: Adjust the Treble/Bass range
SPDIF Audio Delay: Adjust the SPDIF Audio delay.
VOLUME CURVE
Volume Offset: User overall volume control, every source has a unique value.
VOL1–VOL100: All sources share a same value, make sure the next value bigger than the before.
GENERAL SETTING
Power Mode: On/Standby/Last boot status.
LOGO: Set boot logo on or off.
Test Pattern: Test pictures from IC which can help to judge panel issue or not.
Channel Export: Export channel table.
Channel Import: Import channels table to TV.
Watch Dog: watch dog switch.
DEBUG
UART Debug: For Software Designer only
QMAP: Map adjustment
Timer Test: Speed up timer
PANEL and EMCSETTING
SYSTEM INFORMATION
SW UPGRADE
Upgrade TV:update item
Bin Name:Software bin name.
Upgrading the software
MSD3463 has two kinds of chips: MSD3463GSA and MSD3463GU. Please make sure that you get
the correct upgrading file for a certain chipset (refer to the chart below). Introducing 4 upgrading methods one by one: User menu Upgrading, Power on Upgrading, Factory Setting Upgrading, ISP Upgrading. The former three are most commonly-used.
Preparation
This step only applies to power integrated board.
Prepare mini power board(CN.UPGRADE01) for upgrading.
Connect the mini board with main board as below:
Make sure connect the 12V to 12V and GND to GND, or it will cause hardware damage.
The main board should be connected to mains to work if we do not use the CN.UPGRADE01 board. The power module of main board have more than thousands of volts at working. It is easily leads personal injury or damage to equipment if mistakenly touch the main board or some objects fallen into the main board during the upgrading procedure. So use the CN.UPGRADE01 board to reduce the risk of upgrading.
Please keep the electricity ON in the upgrade process.
Operation Procedure
Copy the Upgrading File (SW) to a USB disk and then insert it to the USB port. Search for the SETUP and select Software Update by Left or Right remote control key on User OSD Menu. The pictures below are the upgrading procedure for your reference:
Upgrade Prompt
When upgrading, the TV set will light panel according to the panel parameter, and display the progress bar. If the panel parameter of board matches the panel, you will see the following image:
100% indicates the upgrade finished, and TV will auto reboot after user menu upgrading finished.
Upgrade Flashing Status
You can judge the upgrade progress by flashing of the remote control LED light:
Upgrading:
Red 1000ms Green 1000ms alternates, the TV set will turn to Upgrade succeed or Upgrade Failed status after the upgrading process.
Main program upgrade succeed:
Red 250ms Green 250ms alternates, flashing before power off.
Main program upgrade Failed:
Red 1750ms Green 250ms alternates, flashing before power off.
Notes: In the upgrade process, as timer software is used to control flashing, situations such as LED light stuck when creating partition of flash, is normal phenomenon.
Power On Upgrading
Copy the SW to a USB disk, link it to the USB port, Re-power on, if the LED blinks continually, it means the upgrading is on process, while the LED light off means the upgrading has been completed.
Factory Setting Upgrading
Press <MENU>+1147 to enter the factory setting, search for the “Upgrade” item by the remote control, just like the picture below, then you can follow the steps in the screen.
Install USB driver. Make sure the USB ISP tool is connected to PC before setup
HOTEL MODE
To enter Hotel mode you need press buttons on RC in following sequence: MENU 7 9 0 6.
Structure of Hotel menu:
1. Hotel Mode – on/off hotel mode
2. Source Lock – you can lock any source
3. Default Source – source which appears after turn on TV
4. Default Prog – channel which appears after turn on TV
5. DTV channel type – type of channel which appears after turn on TV
6. Default volume – volume which will be set itself after turn on TV
7. Max volume – maximum volume which can be set
8. Import Database – import all channels and settings from USB
9. Export Database – export all channels and setting to USB
10. Clear Lock – reset all hotel mode settings.
