FUNAI 32"COLOR LCD TELEVISION - LCD-A3206 - LCD-B3206 - LCD-C3206 - LCD-D3206
It makes sense to avoid exposure to electrical shock. While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.
Hot Chassis Warning
a. Some TV receiver chassis are electrically connected directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of 1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the
chassis and a known earth ground.
b. Some TV receiver chassis normally have 85V AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both
personnel and test equipment protection.
c. Some TV receiver chassis have a secondary ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered

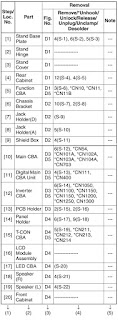

Disassembly Flowchart
This flowchart indicates the disassembly steps for the cabinet parts, and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

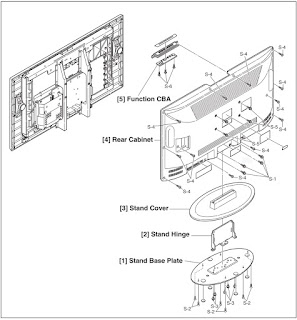

Disassembly Method
HOW TO INITIALIZE THE LCD TELEVISION
To put the program back at the factory-default, initialize the LCD television as the following procedure.
How to initialize.
1. Turn the power off.
2. To enter the service mode, while pressing [SETUP] button, press [STANDBY-ON] button on the TV unit.
- To cancel the service mode, press [STANDBYON] button on the remote control.
3. To initialize the LCD television, press “DISPLAY” button on the remote control unit.
4. Confirm "FF" indication on the upper left of the screen.
ELECTRICAL ADJUSTMENTs
Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed.
Also, do not attempt these adjustments unless the proper equipment is available.
Test Equipment Required
1. DC Voltmeter
2. Pattern Generator
3. Colour Analyzer
How to Set up the Service mode:
1. Turn the power off.
2. While pressing [SETUP] button, press [STANDBYON] button on the TV unit.
- To cancel the service mode, press [STANDBY-ON] button on the TV unit.
Initial Setting
General
Enter the Service mode.
Set the each initial data as shown on table.
Flicker Adjustment
*This adjustment is needed when reparing T-CON CBA.
1. Enter the Service mode.
2. Press [2] button on the remote control unit.

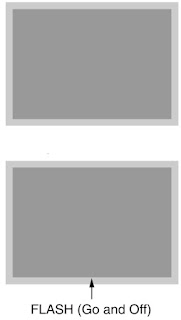

The following screen appears.
3. If Flicker Adjustment is not fit, the screen become the following.
4. Turn the VR1 on the LCD Module so that flash stops.
Purity Check Mode
This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.
1. Enter the Service mode.
2. Each time pressing [7] button on the service remote control unit, the display changes as follows.
Auto Calibration
Purpose: To bring the colour adjustment of each component into standard alignment.
Symptom of Maladjustment: If this adjustment is incorrect, component signals do not reproduce the corresponding color.
Gain Adjustment
1. Input white raster signal (5%=5 IRE, 100%=100 IRE) from Component jack.
2. Enter the service mode.
3. To enter the Auto Calibration adjustment mode, press [5] button on the service remote control unit.
4. To start auto adjustment, press [CH UP] button on the service remote control unit.
- In the auto adjustment mode, “Please Wait” appears on the screen.
- Upon completion, “OK” and appears on the screen.
- If the auto adjustment failure, “ NG” appears on the screen.
Offset Adjustment
5. Input white raster signal (5%=5 IRE) from Component jack.
6. Enter the service mode.
7. To enter the Auto Calibration adjustment mode, press [6] button on the service remote control unit.
8. To start auto adjustment, press [CH UP] button on the service remote control unit.
- In the auto adjustment mode, “Please Wait” appears on the screen.
- Upon completion, “OK” and appears on the screen.
- If the auto adjustment failure, “ NG” appears on the screen.
The following adjustment normally is not attempted in the field. Only when replacing the LCD Panel then adjust as a preparation.
White Balance Adjustment
*This adjustment is needed when repairing T-CON CBA.
Purpose: To mix red, green and blue beams correctly for pure white.
Symptom of Maladjustment: White becomes bluish or reddish.
1. Operate the unit for more than 20 minutes.
2. Input the White Purity.
3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCD-Panel surface after zero point calibration as shown.
Note: The optical receptor must be set perpendicularly to the LCD Panel surface.
4. [CVBS]
Enter the Service mode. Press “VOL DN” button on the remote control unit and select “C/D/S 1” mode.
[YUV]
Enter the Service mode. Press “VOL DN” button on the remote control unit and select “C/D/S 2” mode.
[RGB]
Enter the Service mode. Press “VOL DN” button on the remote control unit and select “C/D/S 3” mode.
5. [CVBS]----(APL 70%)
Press “6” button to select “DB 1(C/D/S 1)” for Blue adjustment. Press “4” button to select “DR 1(C/D/S 1)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “DB 1(C/ D/S 1)” or “DR 1(C/D/S 1)”. Refer to “1. Initial Setting.”
[CVBS]----(APL 25%)
Press “3” button to select “COB 1(C/D/S 1)” for Blue adjustment. Press “1” button to select “COR 1(C/D/S 1)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “COB 1(C/D/S 1)” or “COR 1(C/D/S 1)”. Refer to “1. Initial Setting.”
After adjusting (APL 25%), verify (APL 70%) again and adjust repeatedly until both values are within specification.
6. [YUV]----(APL 70%)
Press “6” button to select “DB 2(C/D/S 2)” for Blue adjustment. Press “4” button to select “DR 2(C/D/S 2)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “DB 2(C/ D/S 2)” or “DR 2(C/D/S 2)”. Refer to “1. Initial Setting.”
[YUV]----(APL 25%)
Press “3” button to select “COB 2(C/D/S 2)” for Blue adjustment. Press “1” button to select “COR 2(C/D/S 2)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “COB 2(C/D/S 2)” or “COR 2(C/D/S 2)”. Refer to “1. Initial Setting.”
After adjusting (APL 25%), verify (APL 70%) again and adjust repeatedly until both values are within specification.
7. [RGB]----(APL 70%)
Press “6” button to select “DB 3(C/D/S 3)” for Blue adjustment. Press “4” button to select “DR 3(C/D/S 3)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “DB 3(C/ D/S 3)” or “DR 3(C/D/S 3)”. Refer to “1. Initial Setting.”
[RGB]----(APL 25%)
Press “3” button to select “COB 3(C/D/S 3)” for Blue adjustment. Press “1” button to select “COR 3(C/D/S 3)” for Red adjustment. When “x” value and “y” value are not within specification, adjust “COB 3(C/D/S 3)” or “COR 3(C/D/S 3)”. Refer to “1. Initial Setting.”
After adjusting (APL 25%), verify (APL 70%) again and adjust repeatedly until both values are within specification.
8. Turn the power off and on again. (Main power button on the TV unit.)
Power [SMPS] and backlight board schematic
