- This TV can receive both DVB-T (Digital terrestrial broadcasting), DVB-S(Digital satellite broadcasting: DB9 only) and Analogue terrestrial broadcasting.
- This television has PVR (Personal Video Recorder) function that allows you to record a program in the installed hard disk drive.
- By connecting a HDMI compatible device, high definition pictures can be displayed on your TV in their digital form.

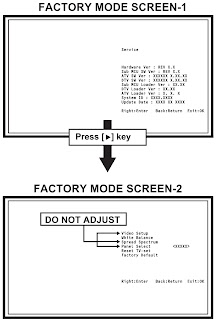

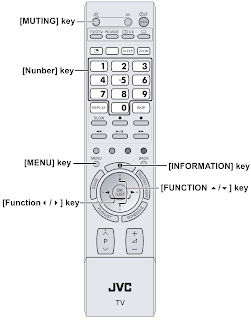

- Press [INFORMATION]key and [MUTING]key on the remote control unit simultaneously to enter the FACTORY MODE SCREEN-1.
- Press [►] key on the remote control unit simultaneously to enter the FACTORY MODE SCREEN-2
- Press the [OK] key to exit the factory mode.
{CLICK ON PICTURES TO ZOOM IN}
SELECTION OF SETTING ITEM
- For scrolling up / down the setting items: [FUNCTION ▲/▼ ] key.
- For select the setting items: [FUNCTION ◄/►] key.
- For scrolling up / down the setting values: [FUNCTION ◄/►] key.
- The setting value will be stored automatically when release the REMOTE CONTROL UNIT keys.

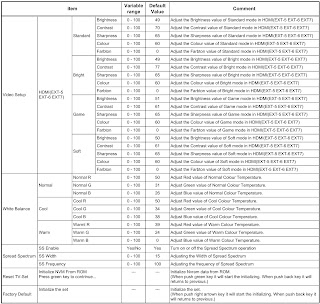

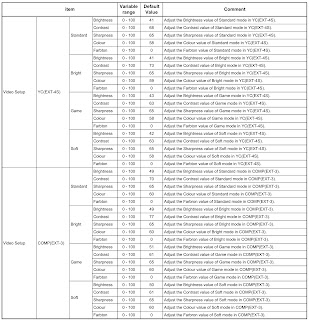

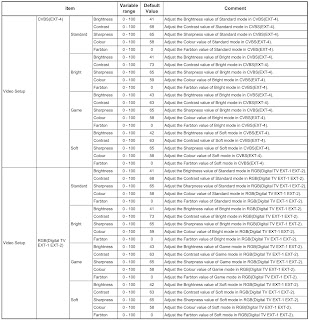

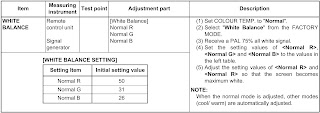

FACTORY MODE SETTINGS [INITIAL SETTINGS]
VIDEO CIRCUIT
