- Turn on the TV, press MENU key with remote control, then press number key 1à9à9 à 9.
- It will achieve the factory mode.
- Select the item of White Balance and press right key to enter it.
- Select “source” like PC/AV/S-VIDEO/HDMI, then select” color temp” to adjust the corresponding R/G/B values.
- 1-3 items is RG, GG, BG ÆR, G, B Gain adjust.
- 4-6 items is RO, GO, BO ÆR, G, B Bias adjust.
- 7 item is Color temp all Mode adjust, color temperature select: Cool, Normal, and Warm.
- 8 item is Def brightness all mode adjust
- 9 item is Def contrast all mode adjust.
>Set the input signal format of PC as 1024x768 @60 Hz, AV as NTSC system, YPbPr as 576I, HDMI as 1080I
>Before adjusting all color temp, make PC and YPbPr auto color first.
>The model usually needn’t to be adjusted W/B, only to make auto color.

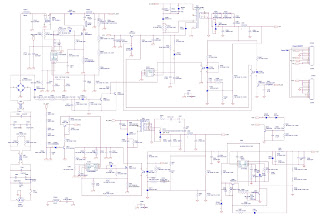

POWER BOARD SCHEMATIC
{CLICK ON SCHEMATIC TO ZOOM IN}
Universal remote control set-up codes
GE UNIVERSAL REMOTE: 0004 0005 0009 0014 0156 0175 0187 {004, 005, 006, 007, 009, 014, 132, 156, 175, 176, 187}
RCA RCR 311W: 1004, 1005, 1025, 1046, 1078, 1205
RCA RCR 312W: 10030
6 IN 1 SUPER REMOTE: 017,018,020,022,188,189,208
