- Place the Ink Supply Tube onto the Tube Guide Sheet with its Tube Porous Pad side down.
- Connect the Ink Supply Tubes (x6) to the Joint.
- Insert the section A of the Tube Guide Sheet Sub from the top into the hole of the Tube Guide Sheet Sub to secure it.
- Attach the Tube Holders (x3) and secure them with the screws in the order shown in the figure.

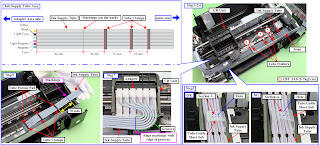

- Hold the Ink Supply Tube by the Adapter side and flip it over as shown in the figure, then put a marking on the bottom side of the Ink Supply Tube 70 mm from the Tube Clamp nearest to the Adapter.
- Connect the Ink Supply Tube to the Adapter, and install the Adapter to the CR Unit.
- Route the Ink Supply Tubes through the grooves of the CR Unit, and align the markings on the Ink Supply Tubes with the edge of the grooves as shown in the figure.
ADAPTER COVER
- Attach the Tube Guide Sheet to the Adapter Cover.
- Insert the dowels (x2) of the Adapter Cover into the holes (x2) of the CR Unit and engage the hook of the Adapter Cover to the CR Unit.
- Make sure no Ink Supply Tubes are caught, then secure the Adapter Cover with the screw (x1).
- After installing the Adapter Cover to the CR Unit, move the CR Unit from side to side while holding the Timing Belt to make sure that the Ink Supply Tube Assy does not apply extra load of the CR Unit movement.
CLICK ON PICTURES TO ZOOM IN

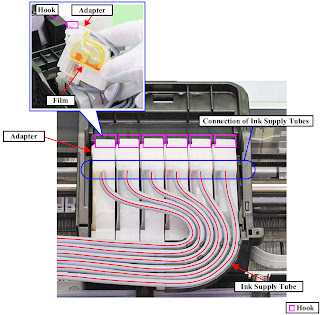

Be careful not to damage or peel off the film of the Adapter.
Use a precision screwdriver when releasing the hooks of the Adapter.
When connecting the Ink Supply Tubes to the Adapter, make sure the red lines on the Ink
Supply Tubes are facing upward as shown in the figure above.
