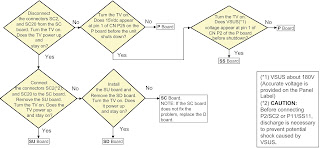

LED BLINKS 6 TIMES
Trouble Mode = SC Energy Recovery SOS
Defective Board (Possibility = SC, SS, D, P Board (SC > SS, D, P)

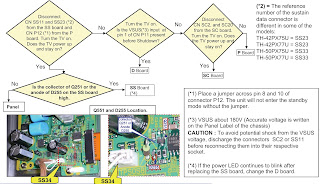

LED BLINKS 8 TIMES
Trouble Mode = SS Energy recovery SOS/Panel
Defective Board (possibility) = SS, SC, D, P board (SS>SC,D,P)/PDP
LED BLINKS 9 TIMES
Trouble Mode = Panel Status
Defective Board = D Board
In this case, only the D board is defective.

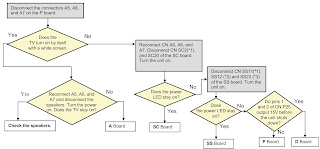

LED BLINKS 10 TIMES
10 BLINKS ALSO CAN BE
Trouble Mode = SUB 5V SOS, Main 3.3V SOS DTV 9V SOS, Tuner Power SOS
Defective Board = P, A, SC,SS Board.
To avoid potential shock from the VSUS voltage, discharge the connectors SC2 or SS11 before reconnecting them into their respective socket.

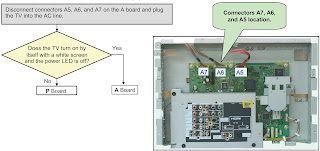

LED BLINKS 12 TIMES
Trouble Mode = Sound SOS
Defective Board (Possibility) = Speakers, A Board.
