DRIVER SETUP ADJUSTMENT
- Input a white signal to plasma video input.
- Picture menu: Vivid
- Normal: Set
- Aspect: Full

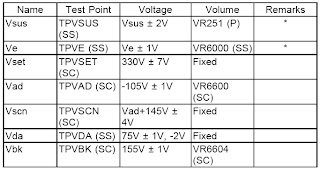

- First perform Vsus adjustment.

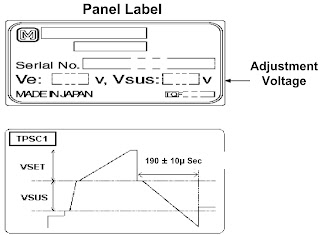

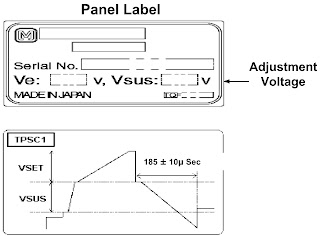

- Confirm the voltage level ofVSCN. This should be done after the adjustment of Vad which should be -105V When Vad= -105V, Vscn voltage is 40V ±4V. See the panel label for voltages.
Set the picture controls as follows.
Caution
Input a 100% White signal to the unit.
Set the picture controls as follows:
Picture menu : Vivid
Normal : Set
Aspect : Full

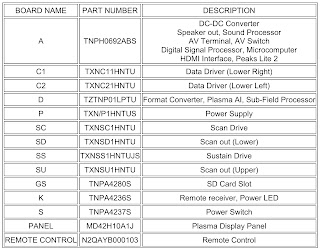

TH-42PX75U/ TH-42PX77U DRIVER SETUP TABLE

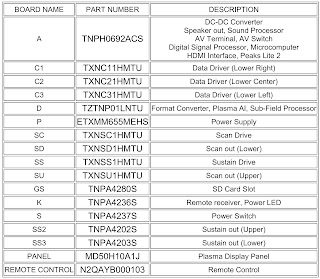

TH-50PX75U/ TH-50PX77U DRIVER SETUP TABLE
