It is established in VESA, for communication between PC and Monitor without order from user for building user condition. It helps to make easily use realize “Plug and Play” function.
For EDID data write, use DDC2B protocolAUTO DOWNLOAD

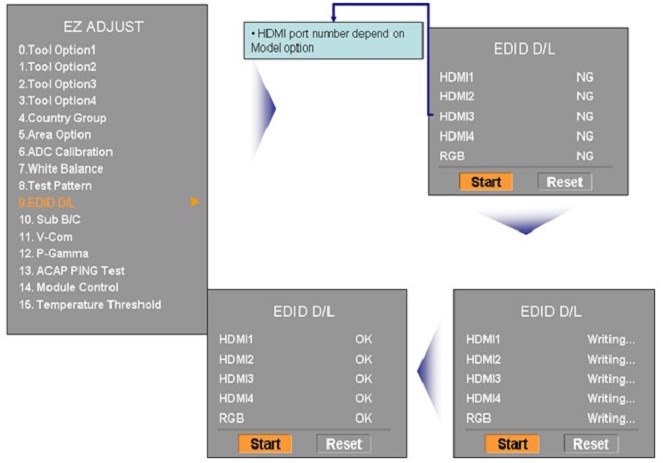

After enter Service Mode by pushing “ADJ” key,
- Enter EDID D/L mode.
- Enter “START” by pushing “OK” key.

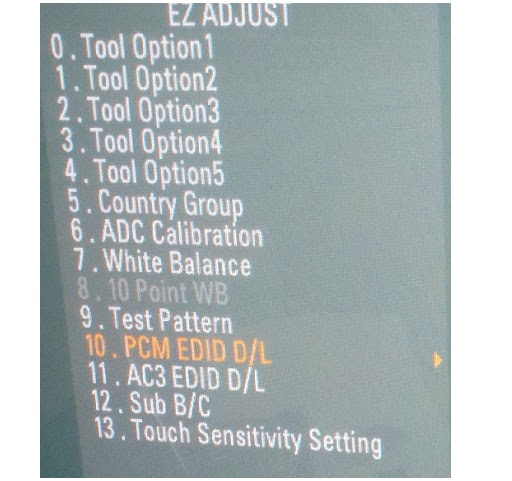

It only needs to PCM EDID D/L for North America Product. (PU11A)

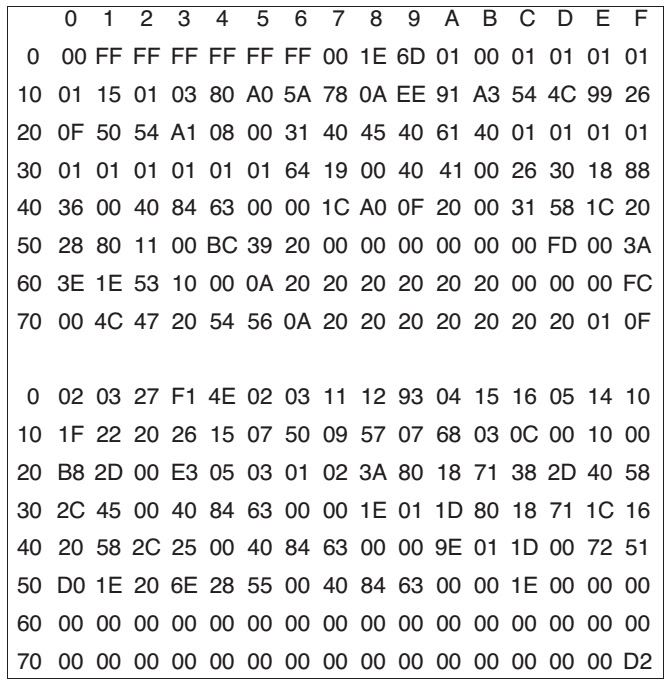

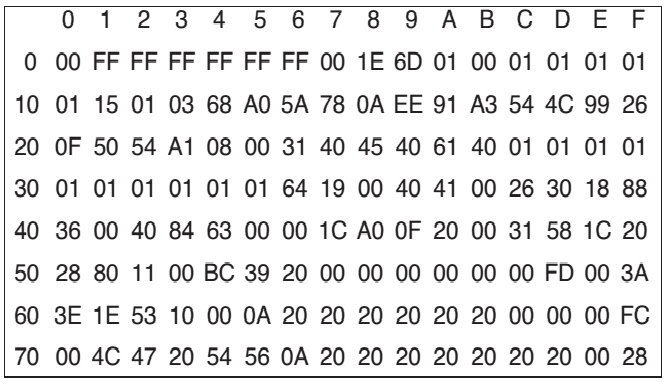

EDID data (Model name = LG TV) HDMI -1 EDID table (2D HD) - South Central America (PT250B/E, PT260E)

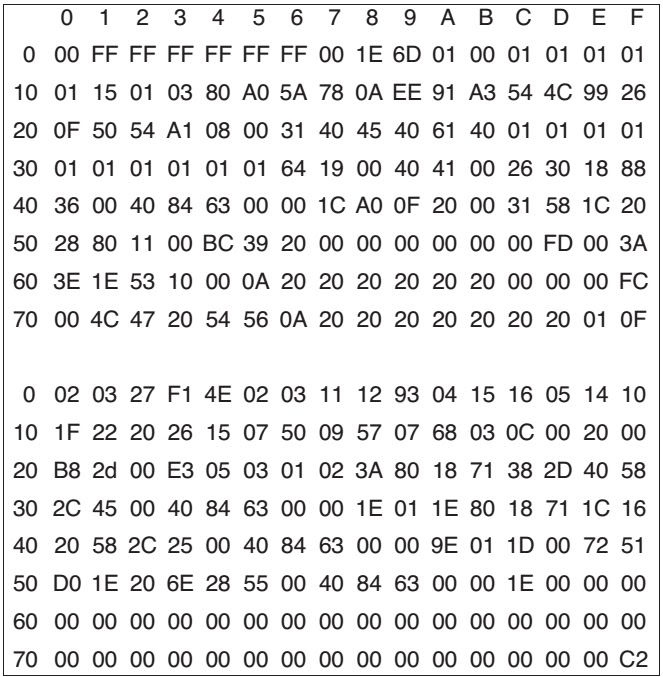

HDMI-2 EDID table (2D HD) - South Central America (PT250B/E, PT260E)
MANUAL DOWNLOAD

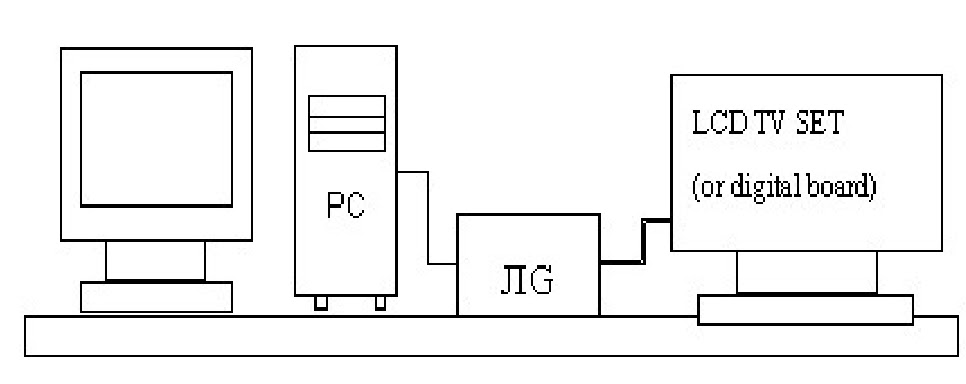

Using instruments
- Jig. (PC Serial to D-Sub connection) for PC, DDC adjustment.
- S/W for DDC recording (EDID data write and read)
- D-sub jack
- Additional HDMI cable connection Jig.
- Set instruments and Jig. then turn on PC and Jig.
- Operate DDC write S/W (EDID write & read)
- It will operate in the DOS mode.
