DISASSEMBLE PROCEDURE

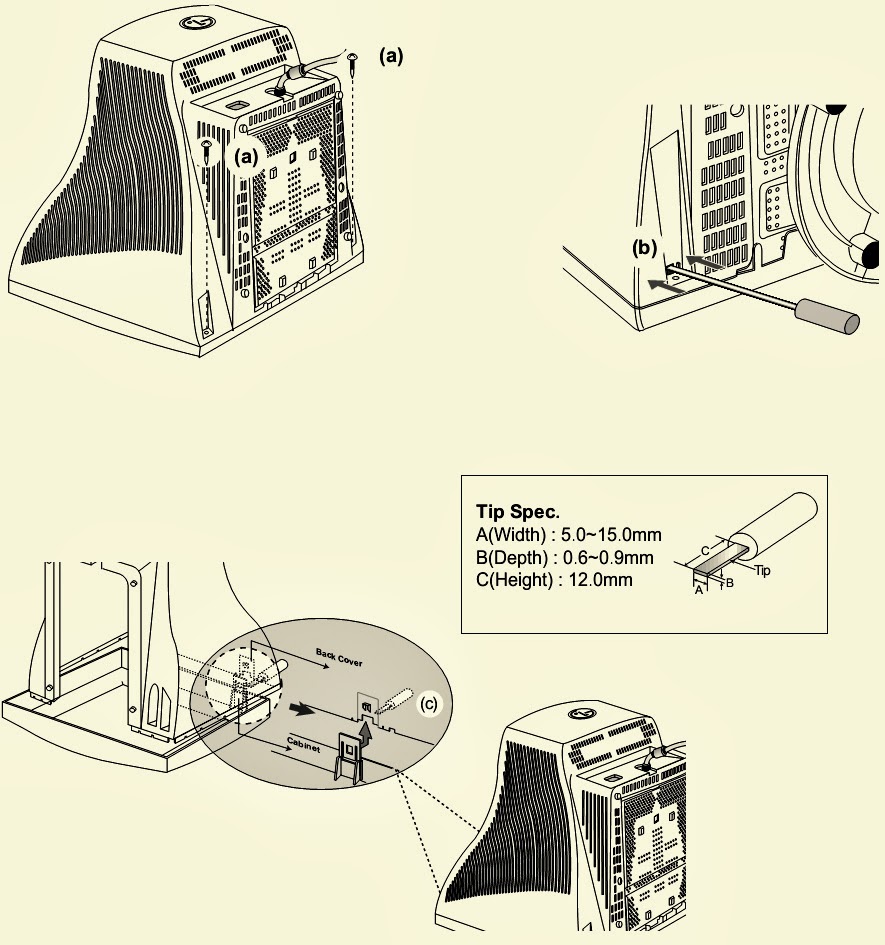

TILT/SWIVEL & BACK COVER REMOVAL
1) Set the monitor face downward.
2) Carefully remove the Tilt/Swivel by pulling it upward.
3) Remove two screws (a).
4) Pressing the latch (b), back cover by pushing it upward.
5) Release the latch (c).
6) Slide the Back Cover away from the Front Cabinet of the monitor.
