Dismantling of the Front Panel Assembly
1) Open the DVD Tray by using the Open/Close Button while the Set is ON and disconnect the mains supply after removing the Tray Cover.
Note: If this is not possible, the DVD Tray has to be open manually. Take a mini screwdriver about 2mm diameter and make a marking 24mm from the tip
Place the set on its side, insert the mini screwdriver till the marking and slide it towards the left until the Tray moves out of the Front Panel.
2) Return the set to its upright position and remove the Tray Cover and close the tray manually by pushing it back in.
3) Loosen 5 screws and remove the Top Cover by lifting the rear portion upwards before sliding it out towards the rear. - 3 screws on the back - 1 screws each on the left & right side
4) Loosen 6 screws & lift up the top edge of Front Panel assembly to free some catches before sliding it out towards the front. - 3 screws on the bottom 1 screw on the inside - 1 screw each on the left & right side.

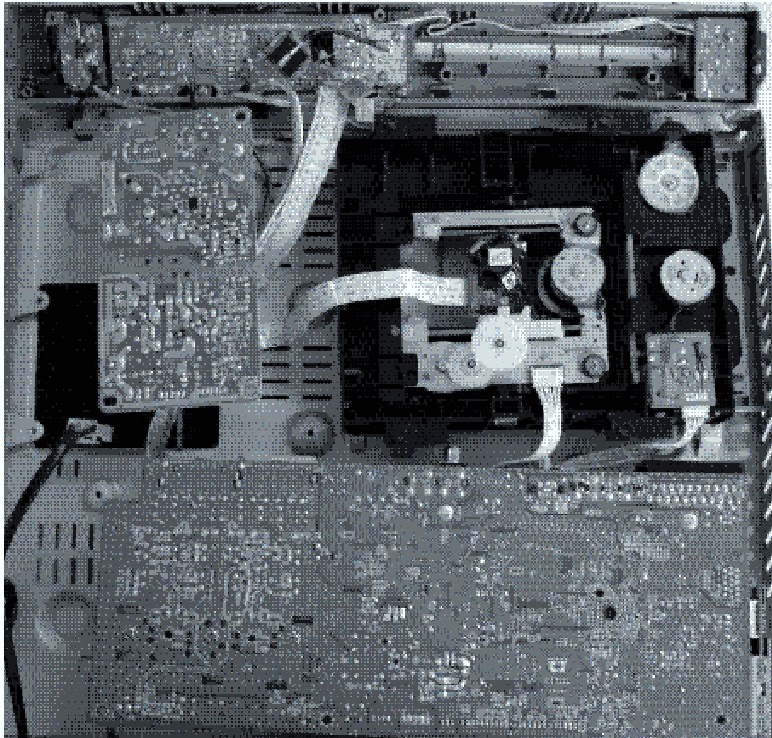

Loosen 4 screws “ A “ on the top of main board as shown.
Loosen 4 screws “B” at the back panel as shown.
Power Board
Loosen 4 screws “D” at the top of the Power Board as shown.
DVD Module
Loosen 4 screws “E” to remove the DVD Module.
Note: In some service positions the components or copper patterns of one board may risk touching its neighboring pc boards or metallic parts. To prevent such short-circuit use a piece of hard paper or other insulating material between them.
