APPLICABLE TO - PHILIPS
201B2CB/00_201B2CB/01_201B2CB/69_201B2CB/75_201B2CS/00_201B2CS/93_201BL2CS/00_201BL2CB/00_201BL2CB/27_201BL2CB/93

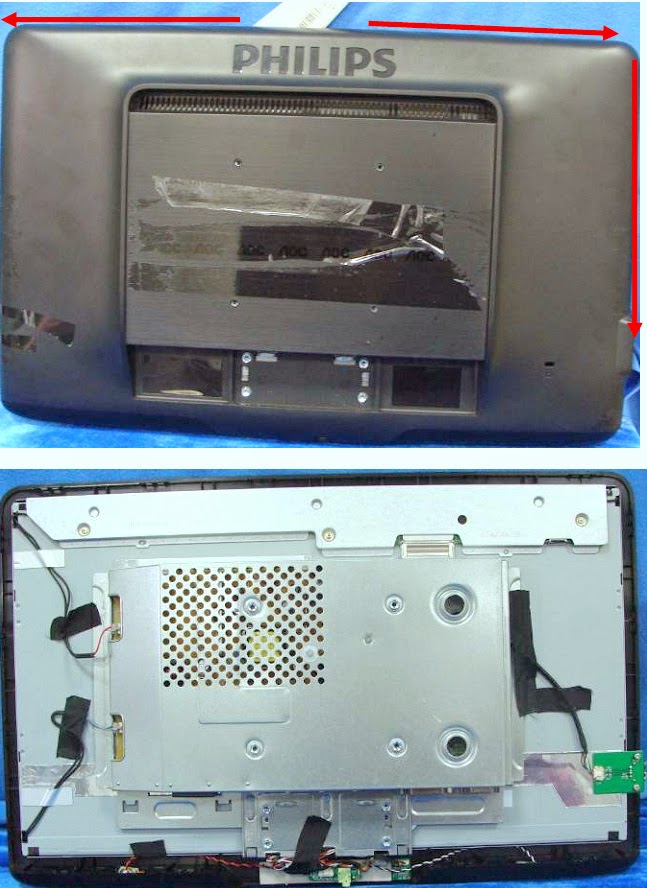

* Place the monitor face on a safe surface, and remove the four screws to remove the stand base ASSY from the monitor.
* Open the latches and along the red arrowhead direction as the picture to open other latches.
* Disconnect the key cable, headphone cable and speaker cable.
* Remove the two screws and disconnect the USB cable to remove the USB Board.
* Disconnect two connectors and four screws.
* Disconnect the FFC cable.
* Remove the four screws that secure the connectors.
* Remove the five screws to remove the power board and scaler board from the main frame.
* Disconnect all the connectors.
* Remove the speakers.
