* Remove four screws to remove the base.
* Remove thirty screws to remove the rear cover.
* Remove five screws and unplug four connectors to remove the scaler board.

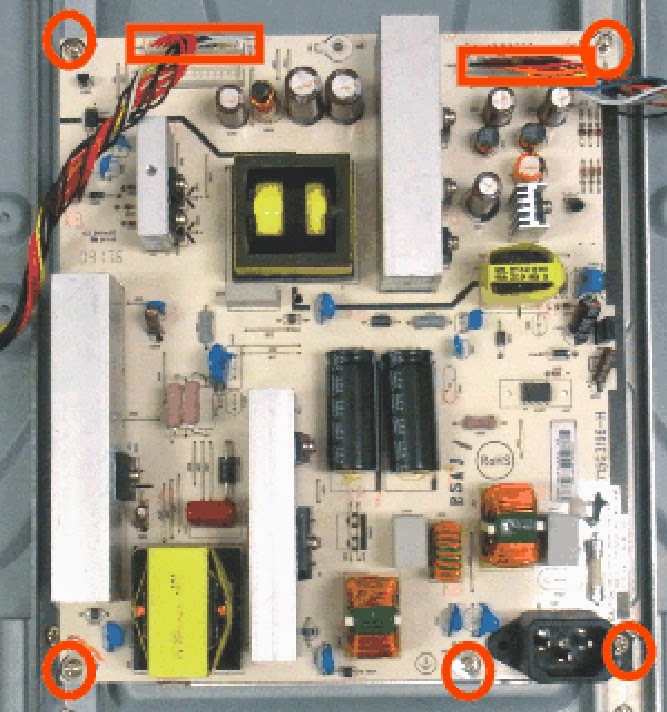

* Remove five screws and unplug two connectors to remove the power board.
↧
