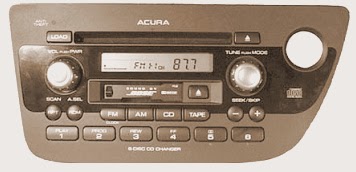

Panasonic HONDA CQ-EH9160A _ AM/FM MPX ELECTRONIC TUNING RADIO with Stereo Cassette Tape Player and 6-Disc CD Changer.
VEHICLE: ACURA RSX: DESTINATION: North America
Dolby NR Alignment & ALIGNMENT POINTS
DO NOT align the FM/AM package block. When the package box is necessary; it will be supplied already aligned at the factory.
![]()
![]()
![]()
![]()
CD DISC ENTERING ALIGNMENT
This adjustment is for assuring that compact discs will be placed in the centre of the turntable.
Adjustment Condition / Jig
Power Supply Voltage : 13.2V
Test Disc : TCD-784M
Adjustment Condition / Jig
Power Supply Voltage : 13.2V
Test Disc : TCD-784M
Adjustment Procedures
* Attach the adjusting screw to the upper chassis (See Figure 1.).
* Insert the test CD (TCD-784M) into the disc No.1 position and play it.
* After checking whether the disc is centred on the turntable, turn the adjusting screw unit it is in the center.
* Attach the adjusting screw to the upper chassis (See Figure 1.).
* Insert the test CD (TCD-784M) into the disc No.1 position and play it.
* After checking whether the disc is centred on the turntable, turn the adjusting screw unit it is in the center.
Check Items
1 Check that the disc is correctly centered.
2 Check that the disc is securely clamped.
3 Check that no abnormal noise is produced when clamping the disc.
1 Check that the disc is correctly centered.
2 Check that the disc is securely clamped.
3 Check that no abnormal noise is produced when clamping the disc.
Directions of Turning the Adjusting Screw
* CD stops before its proper position: Turn the screw counter-clockwise.
* CD overruns: Turn the screw clockwise.
* After the adjustment, lock the screw.
* CD stops before its proper position: Turn the screw counter-clockwise.
* CD overruns: Turn the screw clockwise.
* After the adjustment, lock the screw.
CD SERVO & MAIN BLOCK SCHEMATIC
CLICK ON THE PICTURES TO MAGNIFY
