Circuit Dagram _ Opel Car 300 NT - Opel Car 300 - Opel Car 2003 AUTORADIO

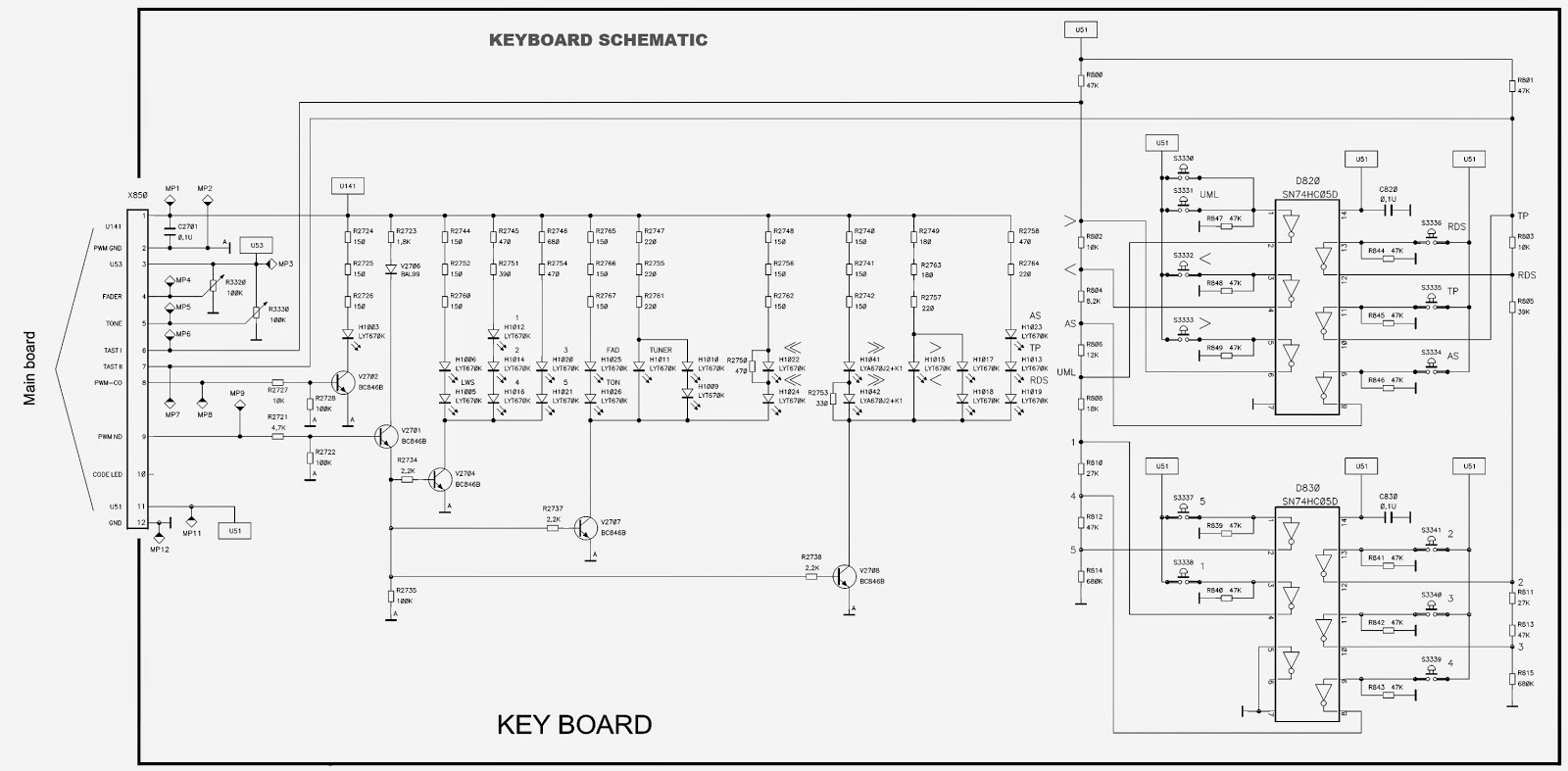

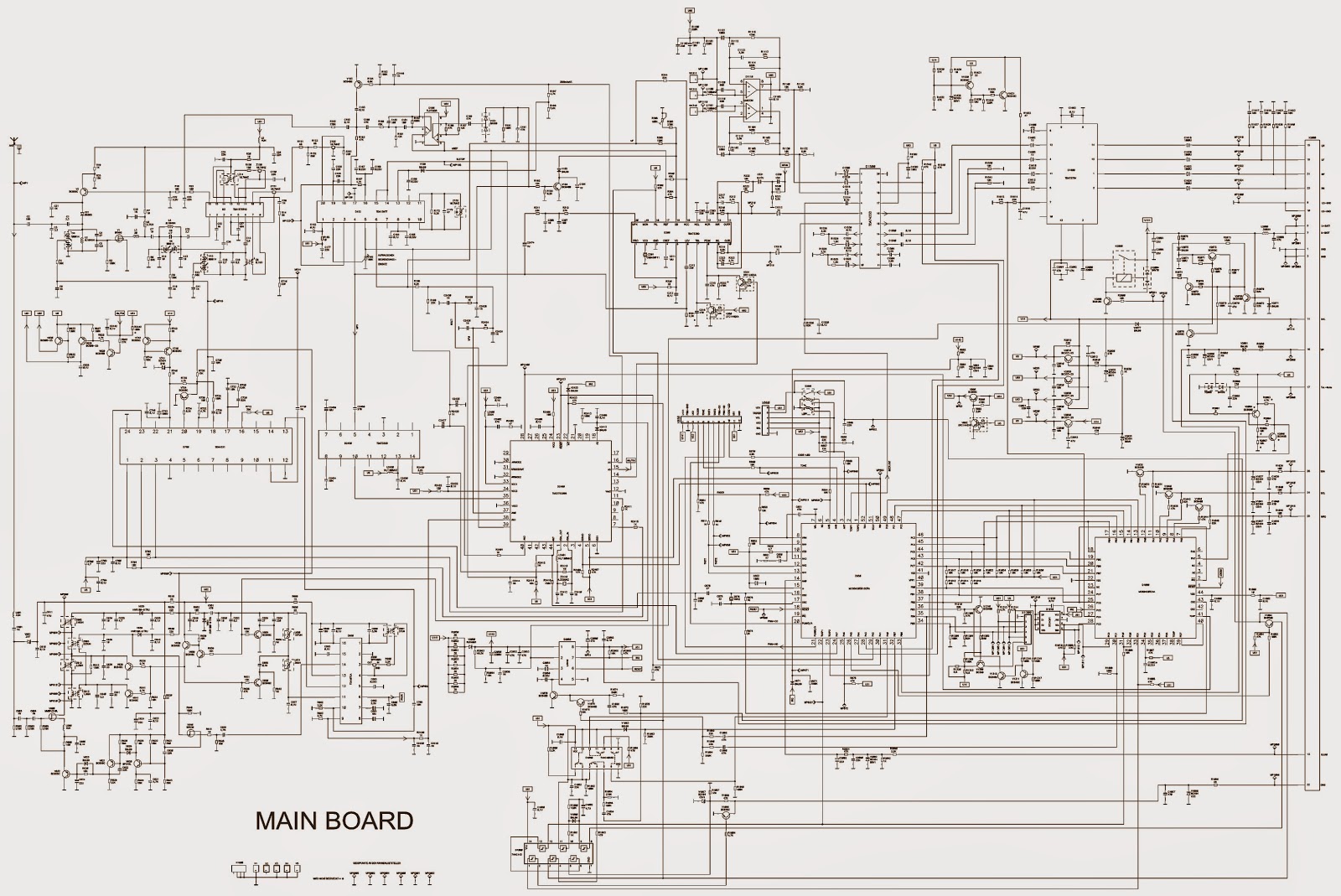

Blaupunkt Opel car radio _ Main board & Keyboard Schematics
There are three types of keyboards for these sets.
CLICK ON THE SCHEMATICS TO MAGNIFY
↧
BLAUPUNKT - Opel Car 300 NT - Opel Car 300 - Opel Car 2003 AUTORADIO - SCHEMATIC
↧
