NOBLEX 32LC815H(Argentina) _ Service Mode _ main power supply (SMPS) circuit diagram - Used ICs FAN7602P – L6599DTRP
* Press and hold the MENU button on Side Controls.
* Keep pressing the MENU button and press the MUTE button on the remote control, and the FACTORY MENU will be displayed.
* Keep pressing the MENU button and press the MUTE button on the remote control, and the FACTORY MENU will be displayed.
* Select “DATA” line by pressing ▲/▼ button.
* Press◄► button to adjust data.
* Press MENU button to exit service mode. The all adjusted data in service mode will be memorized into EEPROM automatically.

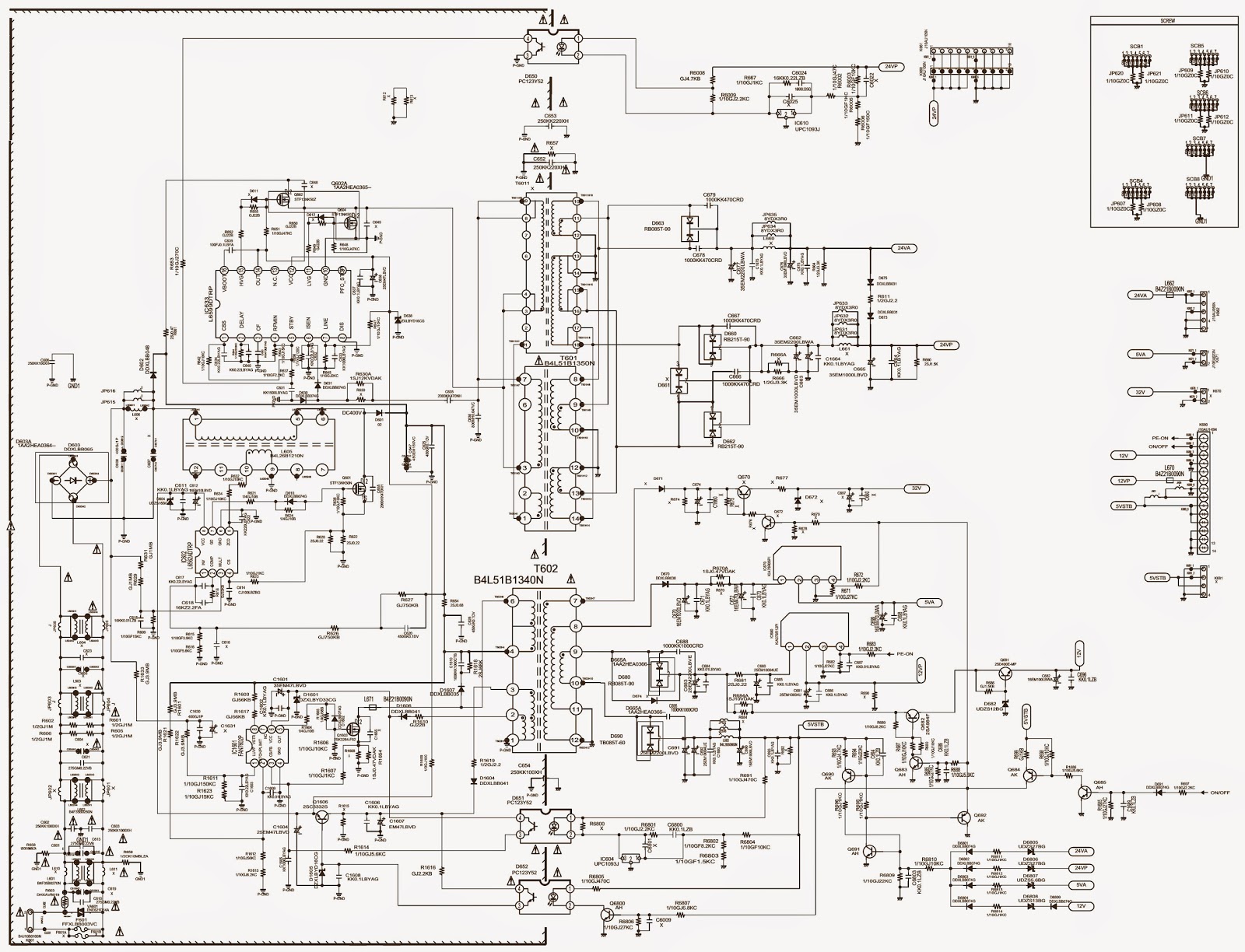

SMPS [Power supply] - schematic
PWB-SOLDER SIDE
CLICK ON THE PICTURES TO MAGNIFY
