Panasonic TC-P42X3 - 42 inch Class 720p Plasma HDTV - Service Mode _ LED blinking Codes
While pressing [VOLUME ( -- )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds.
KEY COMMANDS
1> button...Main items Selection in forward direction
2 > button...Main items Selection in reverse direction
3> button...Sub items Selection in forward direction
4> button...Sub items Selection in reverse direction
* [VOL] button: Value of sub items change in forward direction ( + ), in reverse direction (--)
2 > button...Main items Selection in reverse direction
3> button...Sub items Selection in forward direction
4> button...Sub items Selection in reverse direction
* [VOL] button: Value of sub items change in forward direction ( + ), in reverse direction (--)
TO EXIT THE SERVICE MODE
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
HOW TO ACCESS SELF CHECK
Prod Self-check indication and forced to factory shipment setting
* Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds .
* Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds .
* TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.
TO EXIT; Disconnect the AC cord from wall outlet.
Confirm the following parts if NG was displayed.
SCREEN DISPLAY & CHECK POINTS
POWER LED BLINKING
When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
BLINKING CODES

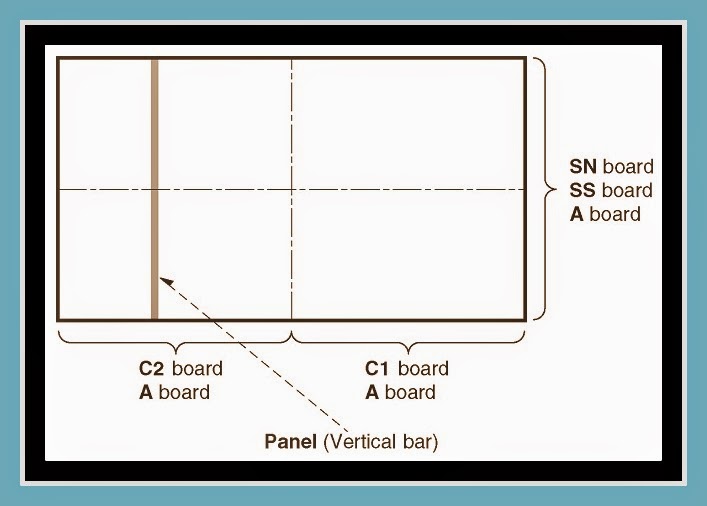

Local screen failure
Plasma display may have local area failure on the screen.
Plasma display may have local area failure on the screen.
Click on the pictures to Magnify
