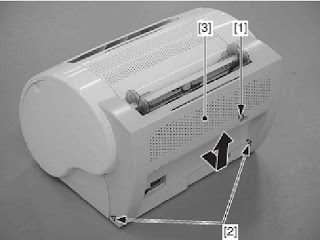

Rear Cover
- Remove the screw.
- Locate the claw under the area indicated by an arrow. Open the bottom of the left/right side of the rear cover, and slide it to the front; free the claw, and lift the rear cover to detach.

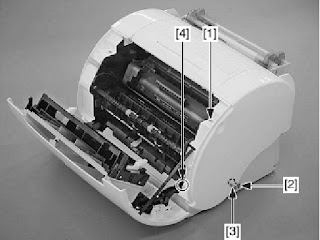

Right Cover
- Remove the rear cover.
- Open the cover of the cartridge assembly.
- Remove the screw and, free the claw under the area indicated by an arrow, and frees the hook; then, detach the right cover.
Left Cover
- Remove the screw
- Open the cover of the cartridge assembly.
- Remove the screw and, free the laws under the area indicated by an arrow, and free the hook; then, detach the left cover.

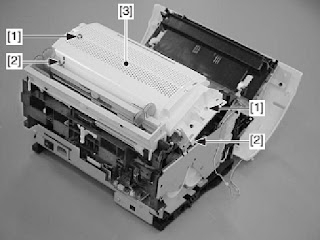

Upper Cover
- Remove the rear cover and the left/right cover.

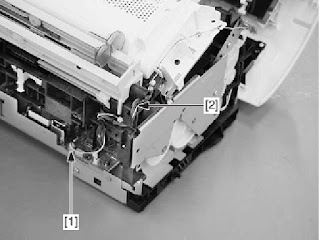

- Disconnect the connector J203 from the engine controller PCB; then, free the harness from the guide.
- Remove the 2 screws, and free the 2 claws; then, detach the upper cover.

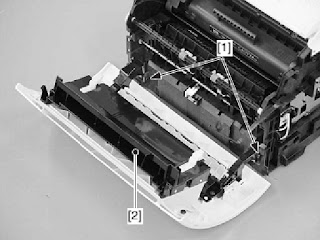

Cartridge Cover
- Remove the rear cover and the left/right cover.
- Open the cartridge cover.
- Force the front cover down to detach.
- While pushing the claw, detach the cartridge cover from the arm.
- Slide the shaft, and detach the cartridge cover.

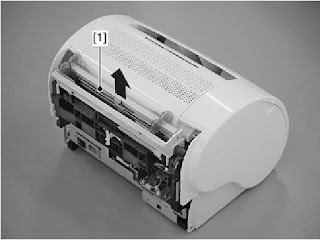

Pickup Tray
- Remove the rear cover.
- Slide up the pickup tray to detach.
