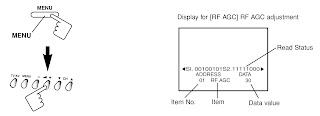

- Press and hold the MENU button on the Remote Control and press the VOLUME (+) button on the TV set.

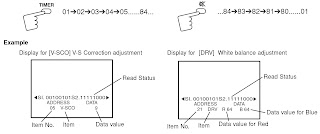

- Select item by pressing the TIMER (Item No. UP) or SOUND MUTE (Item No. DOWN) button on the remote control handset.
- Adjust data value by pressing the VOLUME +or VOLUME -button on the remote control handset.
- To return to normal TV mode, press the MENU button on the TV set or the remote control handset.
INITILIZING
The CPU (IC801) and memory IC (IC802) store the service adjustments data and controls data for each circuit. When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to obtain the best performance. Using the RC handset carries out the necessary service adjustments.Set up the TV set with following steps.
- Put a new memory IC.
- Turn on the TV set.

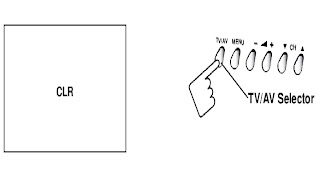

- Press and hold the TV/AV Selector on the TV set for more than 2 seconds. The following picture appears on the screen.
- Press the PROGRAMME Upon the TV set while the above On-Screen Display is still on the screen. The following picture appears on the screen.
- This completes the initialization of memory IC.
Plug & Play : No executed
Inhibit Data : Cancelled
Ch Skip Data : Cancelled
Sound Volume Data : 10/63 steps.
Volume Lock : OFF
Tuning Lock : OFF
Music Mode : OFF
AV Start : OFF
Colour System : AUTO
- Required Service Adjustments
- Adjustments Service Mode No.& Item
- RF AGC Item 01, RF AGC
- Horizontal center Item 02, H-PHA
- Vertical size Item 04, V-SIZE
- Vertical-S correction Item 05, V-SCO
- Vertical linearity Item 06, V-LIN
