- Press and hold the SOUND button of the remote control and press the CHANNEL DOWN (P▼) button on the front control panel of the TV, and the Main menu of service mode will be displayed.

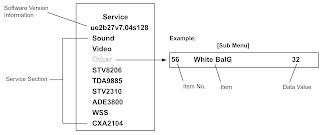

MAIN MENU
- To select Service Section: Press the Cursor or button on the remote control handset, and press the VOLUME + button to enter the Sub menu.
- To change data value: Select service item by pressing the Cursor UP or DN , and change data value by pressing the VOLUME + or - button.
- To return to the Main menu, press the MENU button.
- Exit from the Service Menu Press the MENUbutton repeatedlyor turn off the TV set by pressing the Power ON/OFF button.
TO INITIALIZE MEMORY IC [After IC replacement]
- To initialize the Memory IC (IC802), press and hold the IMAGE button on the remote control, then press the CHANNEL DOWN button on the front panel of the TV set and then turn the Mains switch off and on. The initialization is now completed.
- When initialized the memory IC and all of the setting data (option data and service adjustment data) stored in the IC are reset to the default value. It is necessary to set the option settings and readjust the service adjustments.
- This TV set has a built-in power supply protection circuit.
- It is provided to protect the TV set in case of a power supply circuit malfunctions. When something abnormality occurs during TV reception, the TV set goes to the stand-by mode.
- When operating the Protection Circuit, the Stand-by and Power Indicator will blink.
- To release the protective circuit and restore power supply, disconnect the AC cord for a short time. This will work only if the power supply trouble was temporary. If there is permanent trouble such as a damaged circuit, power cannot be restored and the circuit will have to be repaired.

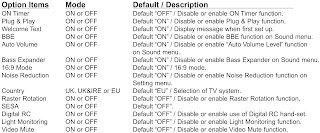

OPTION SETTINGS
- The memory IC (IC802) stores the option data of TV set and service adjustments data for each circuit, therefore, when the memory IC is replaced, it should be programmed to the following settings.

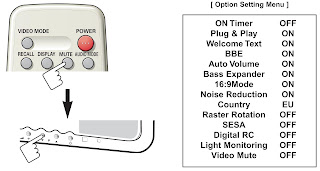

- Press and hold the MUTE button on the remote control and press the CHANNEL DOWN (P▼)button on the front control panel of the TV. The option window will appear on the screen.
- Select desired option item by pressing the CHANNEL UP or DOWN button.
- To switch the option mode, use the VOLUME +or -button.
- The data, which is set in the option mode, is stored into the memory IC automatically.
- Exit from the Option Mode: Press the MENU button or turn off the TV set by pressing the Power ON/OFF button.
{Click on pictures to Zoom In}
Universal Remote Control Set-up Codes
With GE universal remote control: 0049 0097 0110 0004 0268 0012 0108 0180 {004, 012, 013, 048, 049, 050, 080, 097, 107, 108, 110, 162, 169, 180, 209, 268}
With RCA RCR 311W: 1047, 1078, 1080, 1121, 1129, 1163
With RCA RCR 312W: 10054, 10154, 10159, 11142
With 6-in-1 super remote: 024,026,036
With Philips Magnavox: 002 412 506 619 902
Others: 1073 1079 1069 1072 1145 1423 10611178 1047 1171 1298 1316 1347 1349 1143 1157 1172 1208 1360 1024 1115 1052 1232 1046
