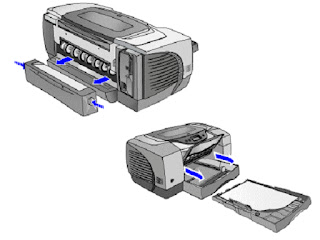

- Push the two buttons located on both sides of the clean-out trough to remove it.

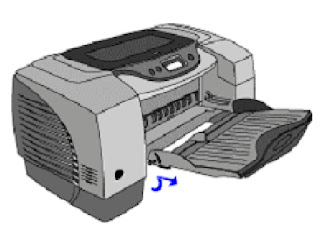

- Lift the output tray.
- Pull to remove the main tray.
- Lift the output tray.
- Pull to remove the output tray.

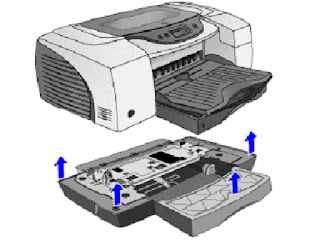

Lift the printer off the 2nd bin SVC.
Assy. Door Main
Lift the Assy. Door Main
Release the two tabs and remove the Door Main.
Assy. Access Door
Lift the access door.
Loosen the two catches of the access door and remove it.
Cover LIO SVC
Remove the LIO cover from its slot.
Duplexer SVC
Push the buttons located on both sides of the auto-duplex unit to remove it.
Assy. Pick Roller SVC
First remove the following:
- Auto-duplex unit/ rear access panel
- Use long nosed pliers to turn the catch clockwise.
Case Left SVC
First remove the following:
- Auto-duplex unit/ rear access panel
- Assy. Pick Roller.
Remove Case Left.
Case Right SVC
First remove the following:
- Auto-duplex unit/ rear access panel
- Assy. Pick Roller.
Remove Case Right.
Bezel SVC
Lift the Main door.
Use a flathead screwdriver to release the six catches and remove the Bezel.
Cover Key panel
First remove the Bezel.
Using a screwdriver remove the T-10 screws.
Remove the cover key panel.
Assy. Light pipe SVC and PCA Assy. Light pipe SVC and PCA Key panel.
First remove the following:
- Bezel
- Cover key panel.
Pull out the harness.
Release the four catches located on the back.
Remove the Assy. light pipe and the PCA key panel.
Assy. Case Main SVC
First remove the following:
Assy. Tray Main
Assy. Output tray
Assy. Door Main
Assy. Access Door
Case Left
Case Right
Bezel
Cover Key Panel
Assy. Lightpipe & PCA key panel.
- Remove the T-20 screw and push the cable through the slot.
- Use a flathead screwdriver to release the six locks located at the bottom of the printer.
- Remove the Assy. Case Main.
