Contn:

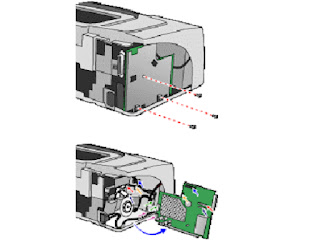

PCA Assy. Logic SVC
Remove the T-10 screws.
Pull the harness.
Remove the flexi cable.
Pull out the harness and the flexi cable.
PCA Power Supply SVC
Remove the T-10 screws.
Remove the T-20 screw to remove the green harness.
Use a flathead screwdriver to remove the power harness.
Remove the power supply unit.
Assy. USB SVC
Remove the T-10 screws.
Detach the Assy. USB SVC.
PCA Duplexer Interconnect
Remove the T-10 screw.
Turn the Duplexer Interconnect unit to pull out the harness.

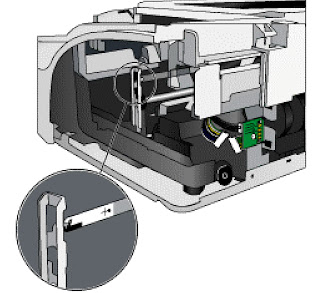

Assy. Service Station.
Remove the T-10 screw.
Slide out the Encoder strip from its slot in the Encoder holder.
Remove the Encoder holder.
Use manual uncap, if necessary.
Pull out the two harnesses.
Remove the Assy. Service station.
Assy. Ink Supply Station
Remove the T-10 screws.
Pull out the (Black and white) harness and the motor harness.
Use long nosed pliers to cut the clip to remove the harness.
Remove the ink supply station.
Base Absorber/Basin SVC
Remove the base absorber.
Remove the Basin SVC.
Bottom Cover Bottom Cover - Main Case SVC
Use long nosed pliers to push the two tabs located on the bottom cover.
Remove the Bottom Cover Main Case SVC.

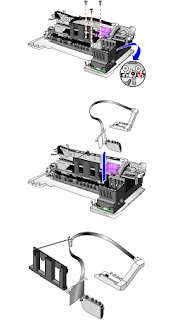

Holder Holder - raceway/hanger SVC and Assy. Replaceable IDS SVC
Remove the T-10 screws.
Lift the printhead access latch to remove the hanger SVC.
Separate the hanger SVC and the Assy. Replaceable IDS
Encoder Strip
Remove the Encoder strip from its slot.
Remove the Encoder strip from its slot in the Encoder holder.
Slide out the Encoder strip.
