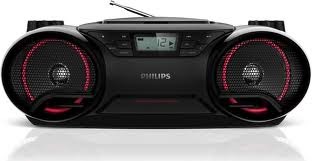

PHILIPS AZ-3811 - MP3/WMA-CD 5W SOUND-MACHINE - SCHEMATIC DIAGRAMS / CIRCUIT DIAGRAMS

May 22, 2013, 1:45 am
$
0
0

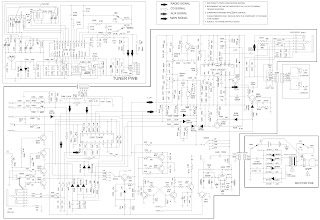

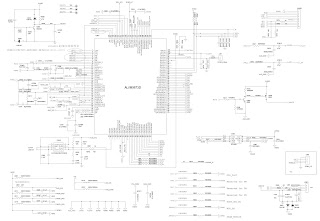

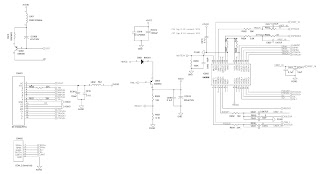

MAIN RADIO/RECTIFIER BOARD

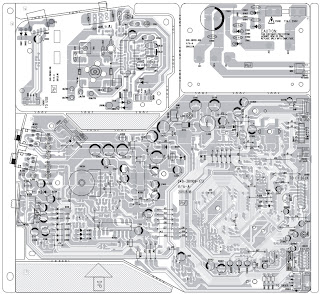

PCB - MAIN RADIO/RECTIFIER - TOP VIEW

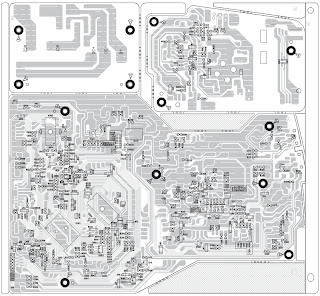

PCB - MAIN RADIO RECTIFIER - FOIL SIDE

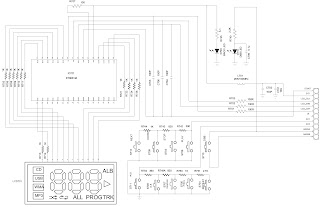

CIRCUIT DIAGRAM - DISPLAY BOARD

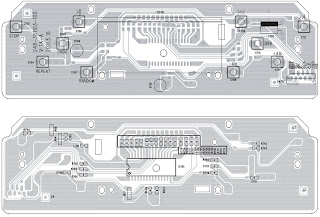

PCB - DISPLAY
Click on pictures to Enlarge

↧
