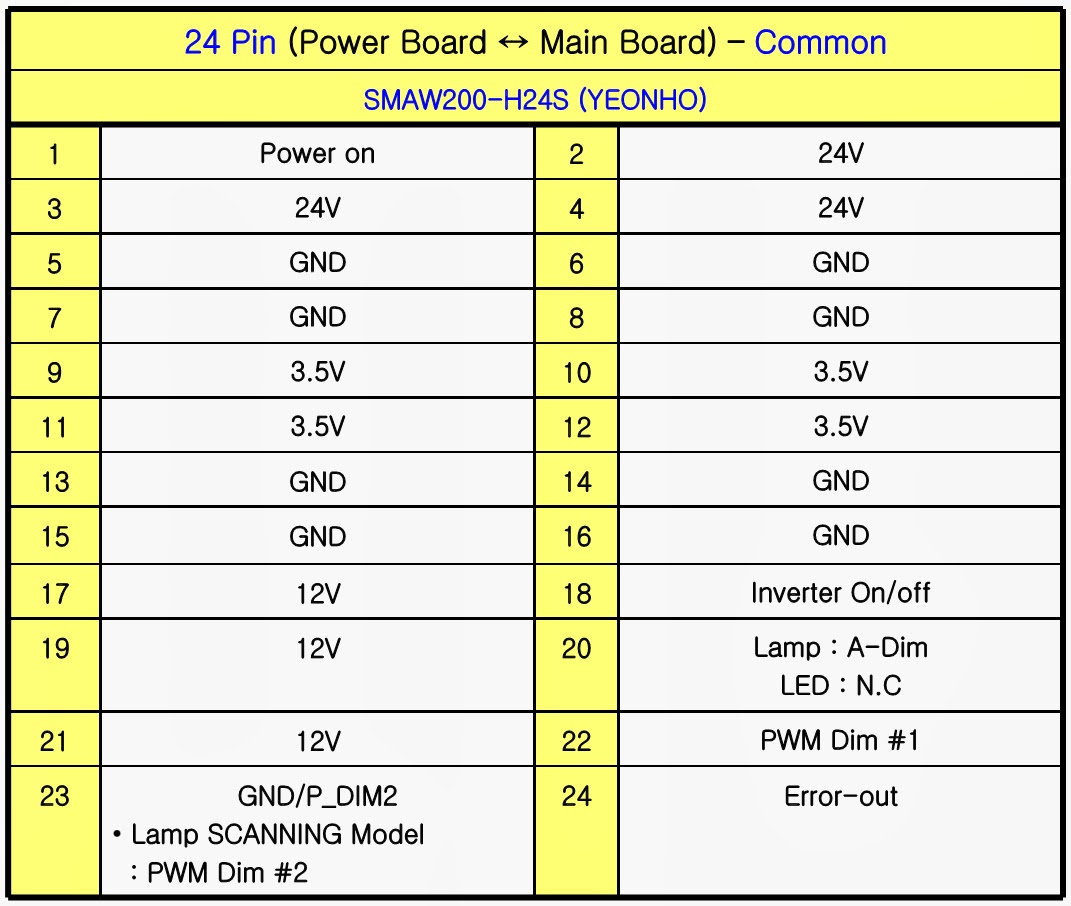

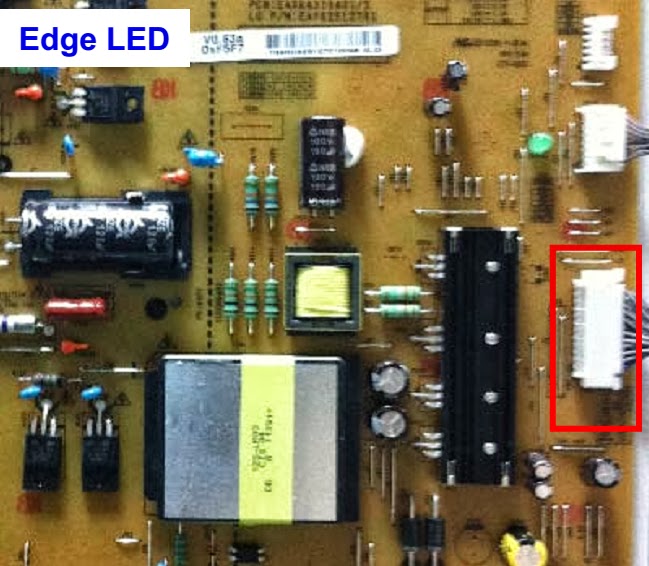

Check the DC 24V, 12V, 3.5V.
Click on the pictures to Zoom. Click ß at the top left of the browser, to come back

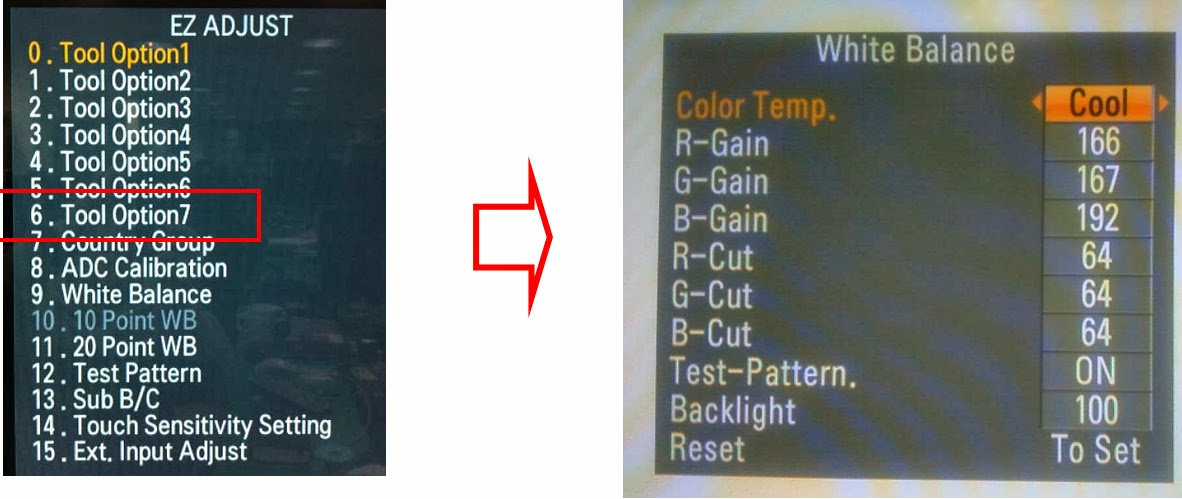

NO VIDEO _ NORMAL AUDIO ]Check White Balance Value]- Press the ADJ button on the remote controller for adjustment.
- Enter into White Balance of item 6.
- After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re- enter the value after replacing the MAIN BOARD.

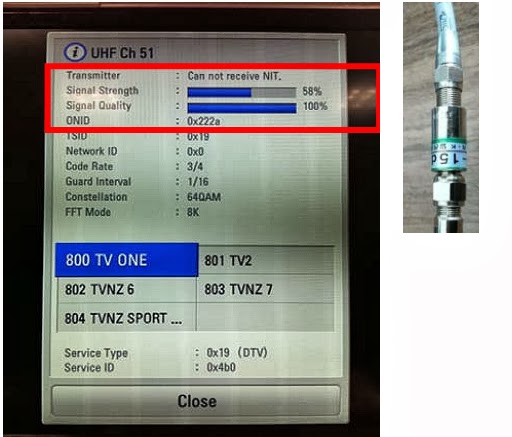

VIDEO LAG OR STOP: Tuner input signal strength checking

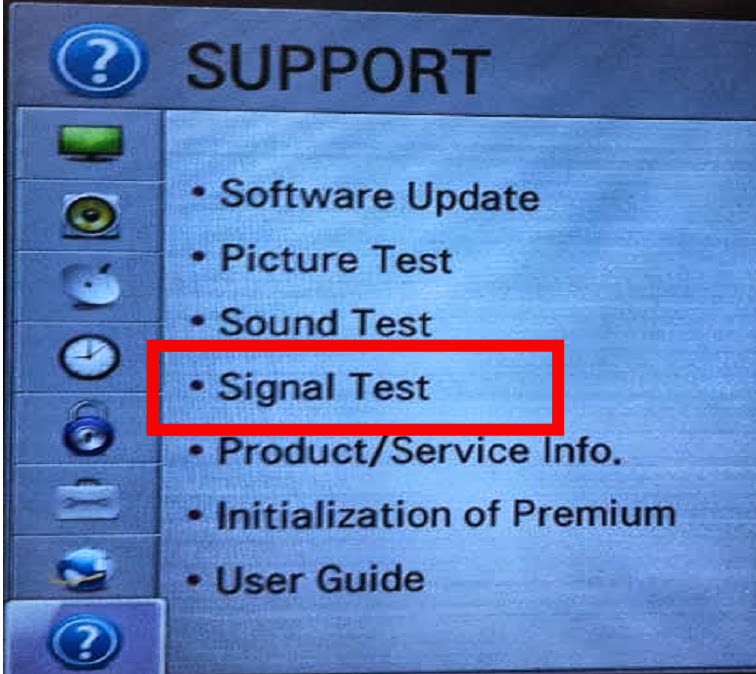

- MENU àSET UP à SUPPORT àSIGNAL TEST à SELECT CHANNEL
When the signal is strong, use the attenuator (-10dB, -15dB, -20dB etc.)

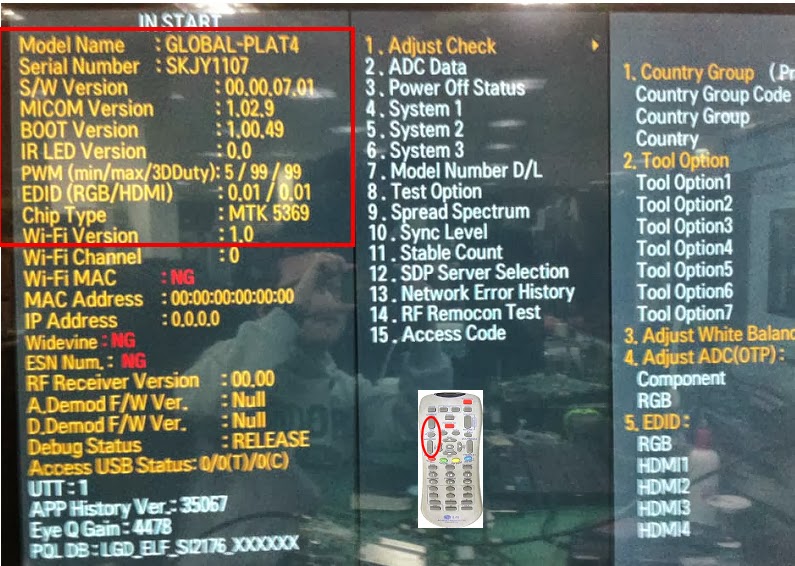

LCD-TV Version checking method _Checking method for remote controller for adjustment
- Press the IN-START with the remote controller for adjustment.
