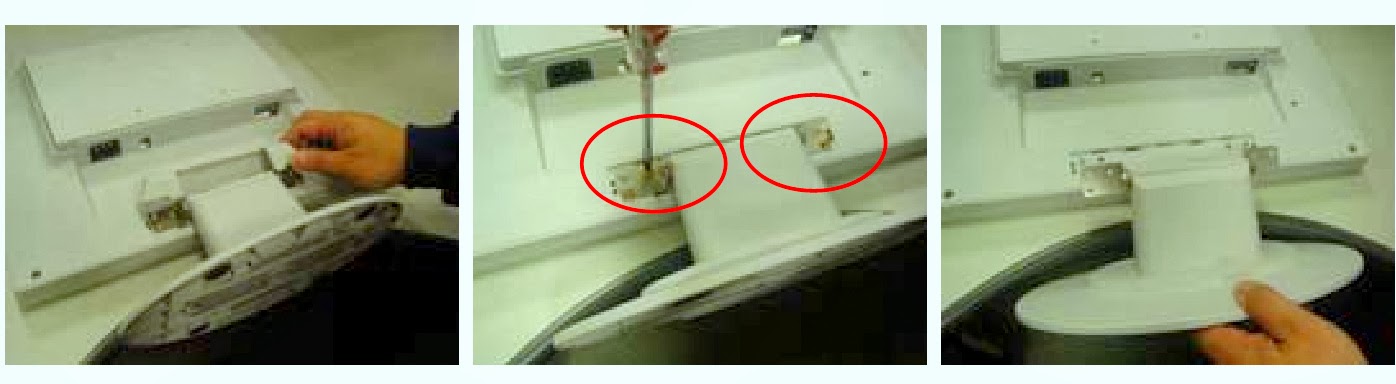

Disassemble the base
Remove the neck cover.
Remove the four screws to release the hinge.
Remove the base.
CLICK ON THE PICTURES TO ZOOM IN

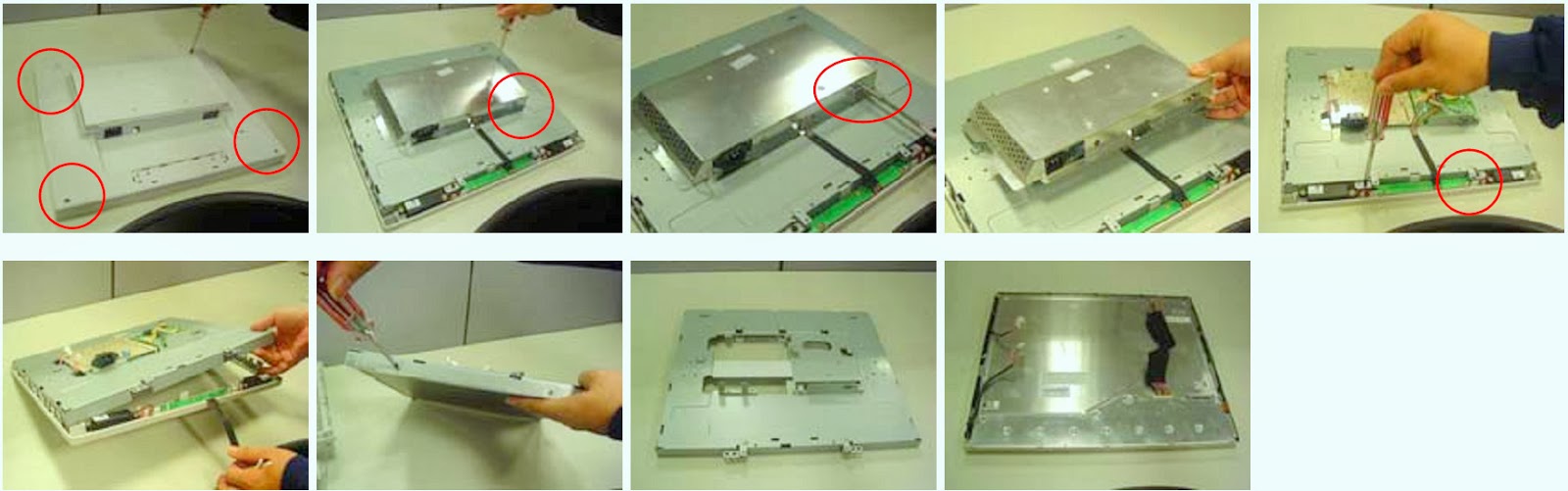

Disassemble the chassis
Remove the four screws to release the back cover.
Remove the two screws to release the EMI cover from chassis.
Remove the two screws from VGA connector.
Then take the chassis.
Remove the two screws from bezel.
To separate the chassis and bezel.
Remove the four screws from chassis and release the panel.

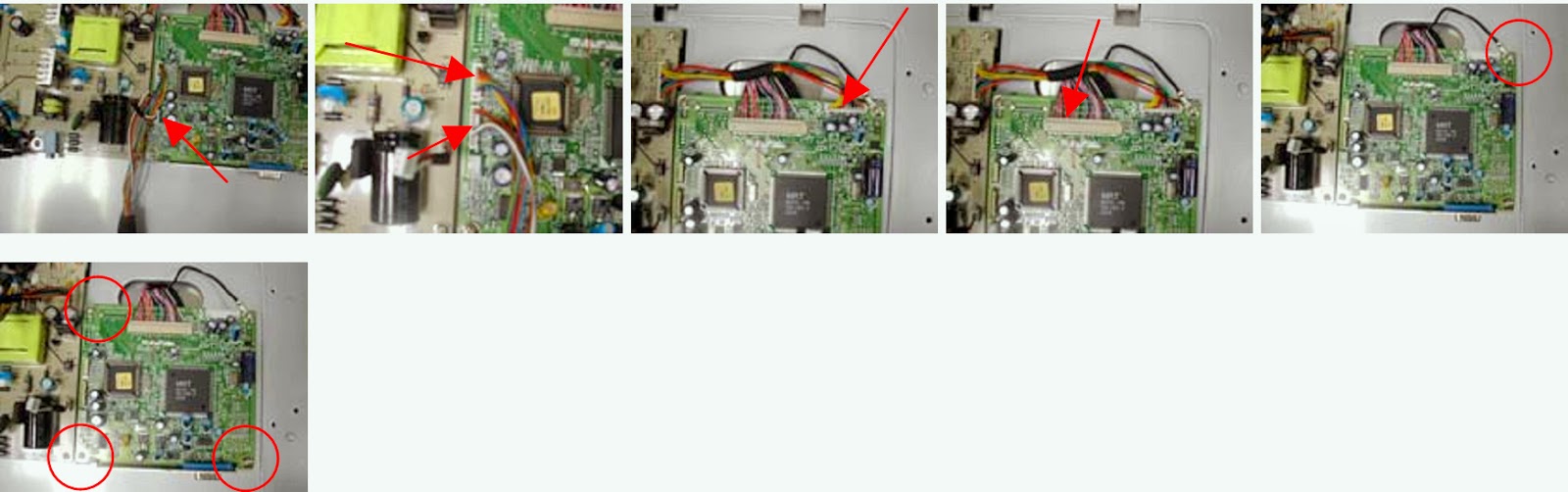

Disassemble the main board
Disassemble audio line from power board.
Disassemble two VL-VK lines from VL board.
Disassemble power line from VL board.
Disassemble FPC line from VL board.
Remove the one screw to release line from Chassis.
Remove the three screws from Chassis and release the main board.
Disassemble the power board
Disassemble two voltage lines from power board.
Remove the one screw to release line from Chassis.
Remove the three screws from Chassis.
Remove the two screws to release power board from Chassis.
Then take the power board from the chassis.

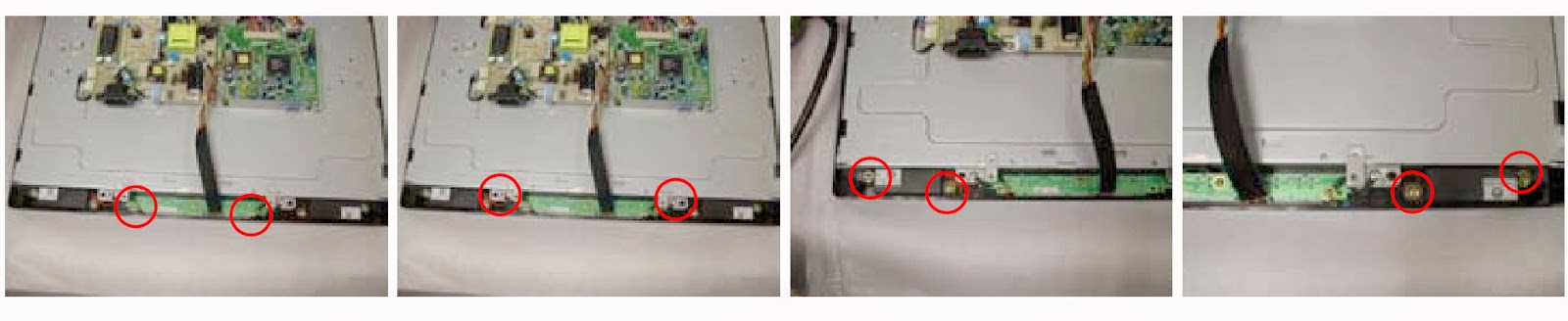

Disassemble the speakers
Remove the two screws to release line and VK board from bezel.
Remove the two screws to release line and chassis from bezel.
Remove the four screws from bezel.
TROUBLESHOOTING TABLE

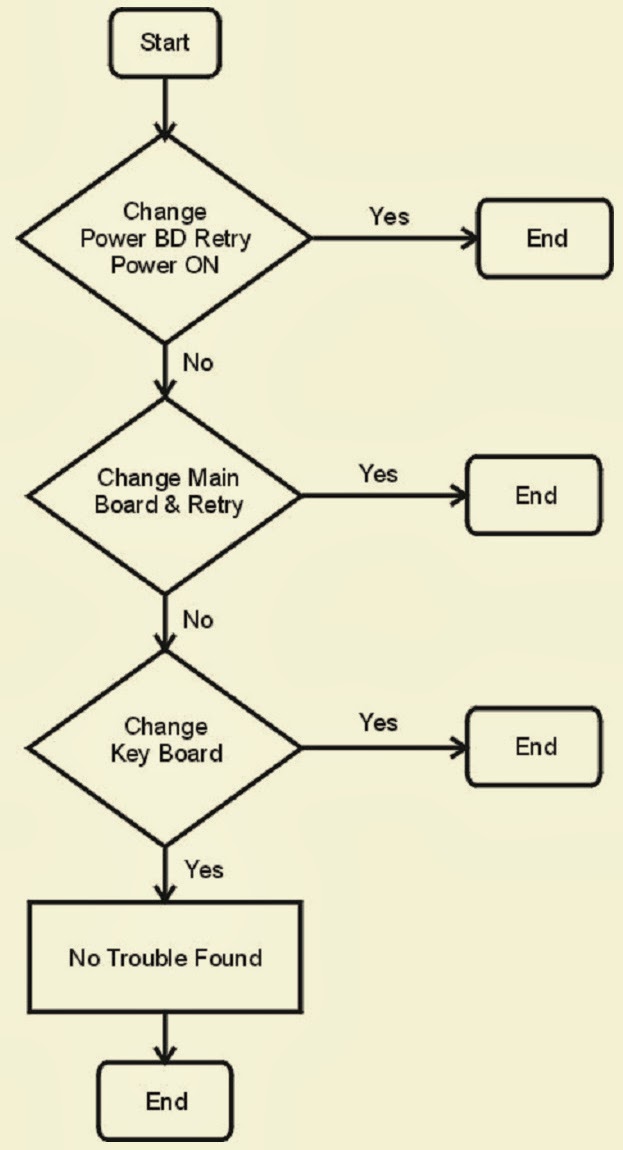

Power Circuit and Back-lights Troubleshooting

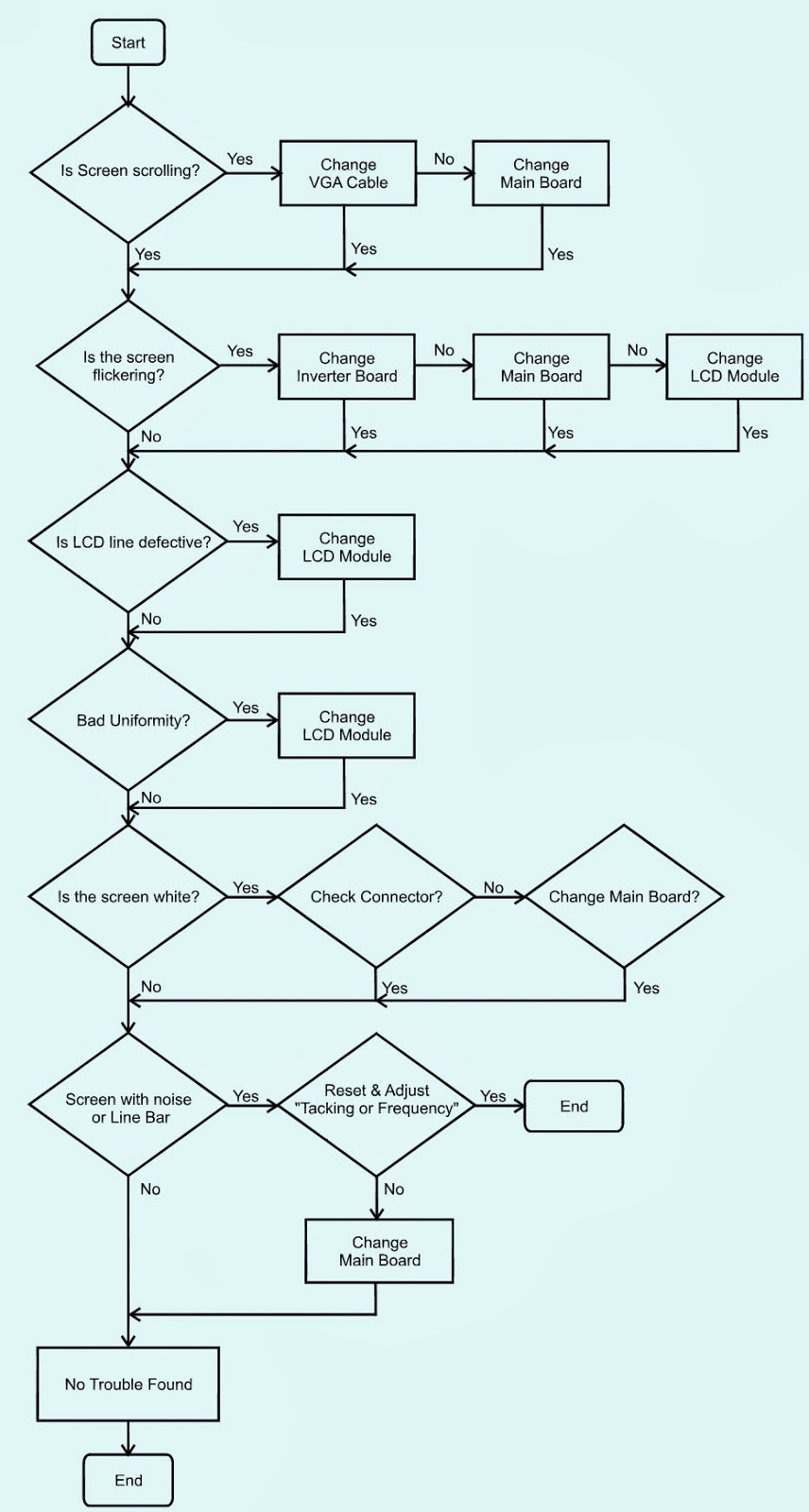

Performance Troubleshooting

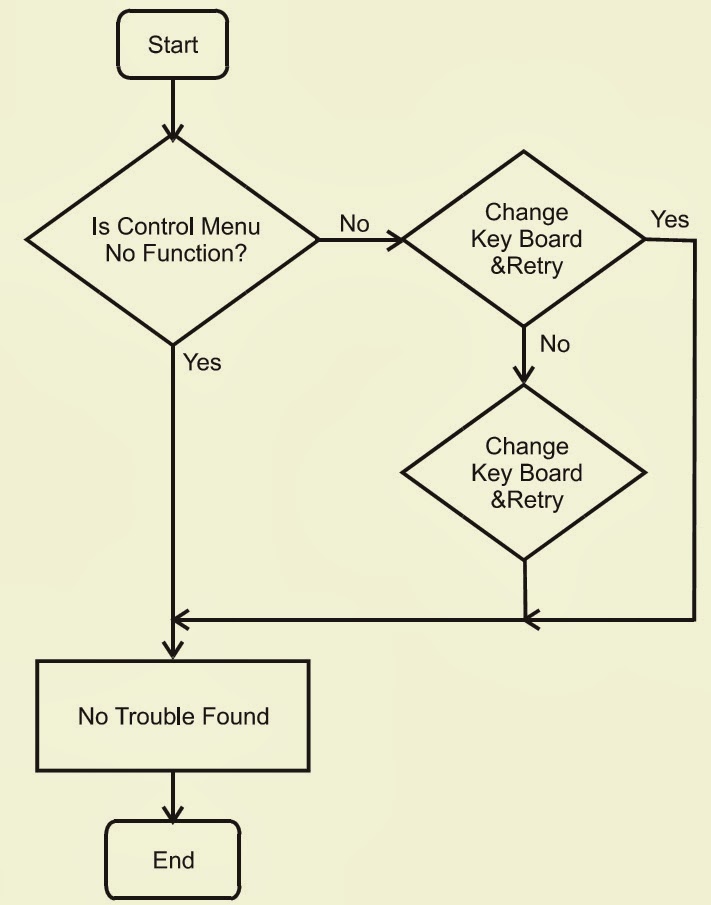

Function Troubleshooting
