- Disconnect power cord from the monitor.
- With a pad beneath it, stand the monitor on its front with the screen facing downward and the base close to you.
- Remove the Stand from the monitor.
- Remove 2 screws on the Rear cover.

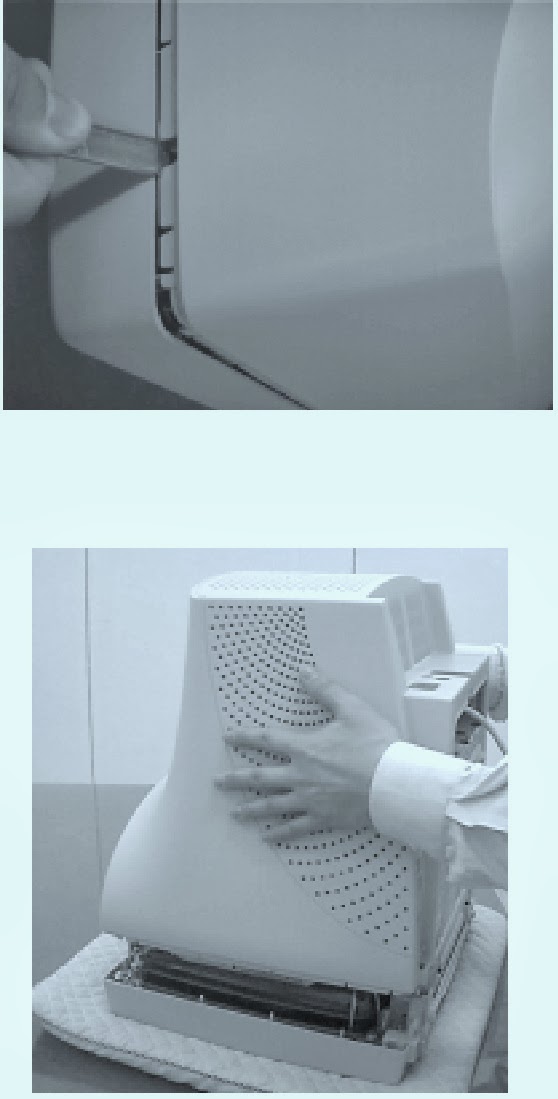

- Tilt the monitor by lifting at the rear.

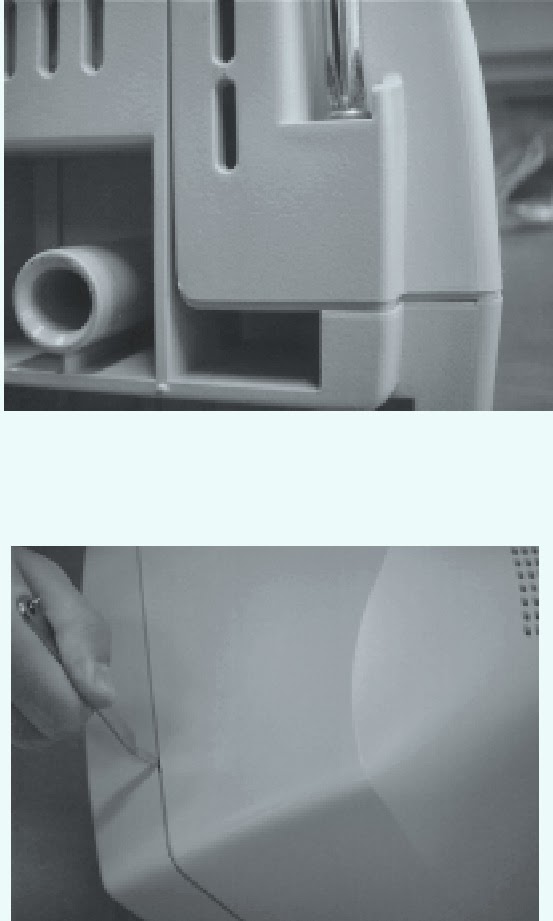

- Push the Opening jig in to each groove along the top of the monitor until makes a “tak” sound. (2 grooves: Left and Right, Make sure each snap is disengaged.)
- Pull the Rear Cover up and away from the monitor.
CLICK ON THE PICTURES TO ZOOM IN

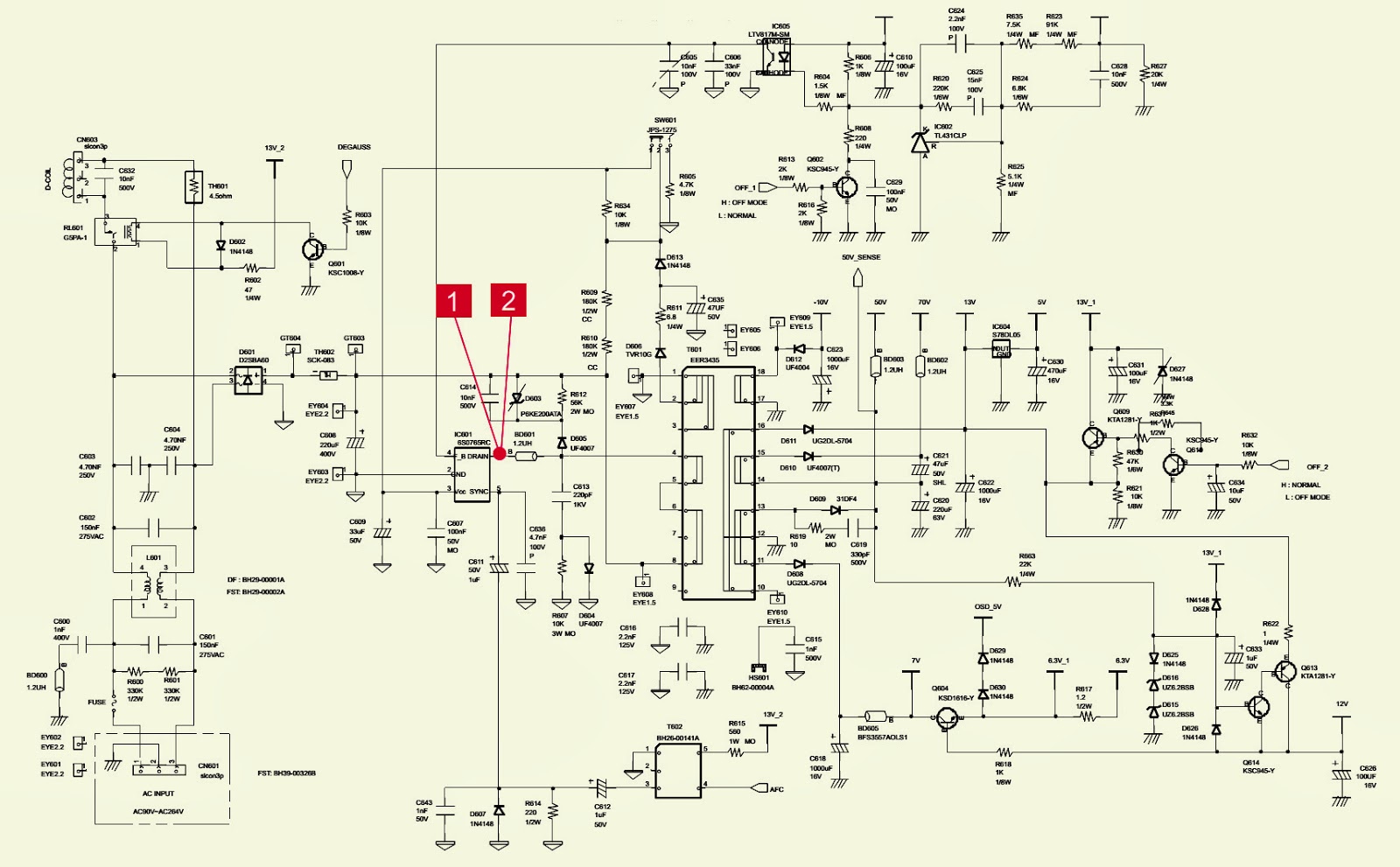

SMPS SCHEMATIC
