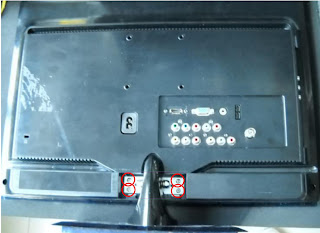

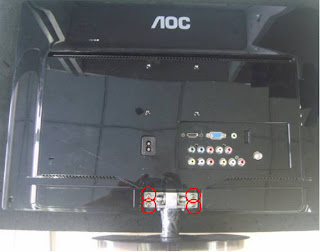

Unscrew the 4 screws to remove the STAND and BASE. T942WE/ T2442E

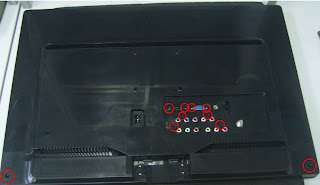

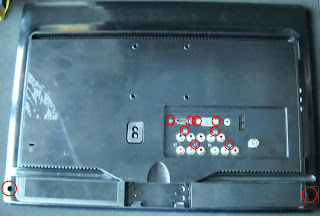

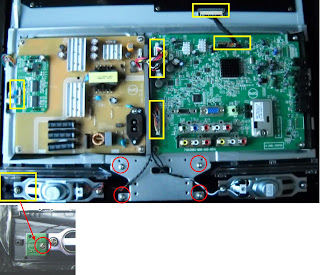

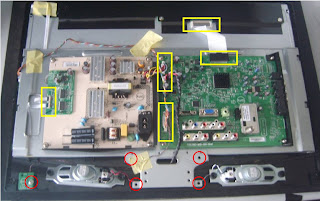

Disconnect the connectors; unscrew the 5 screws to remove IR BOARD and separate MAIN FRAME and BEZEL. T942WE
T2242WE
T2442E

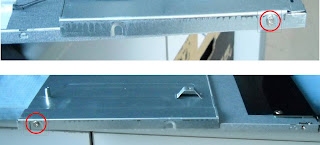

Unscrew the 2 screws to separate panel and main frame.

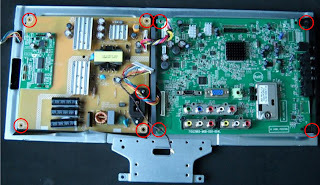

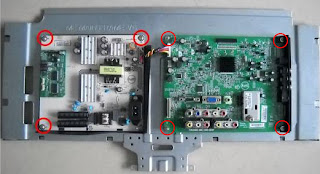

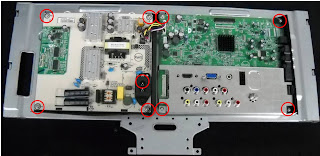

Unscrew the screws to remove MAIN BOARD and POWER BOARD. T942WE
T2242WE
T2442E

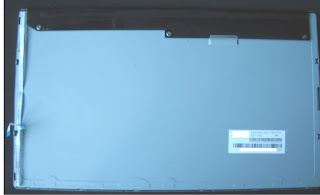

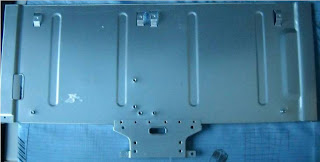

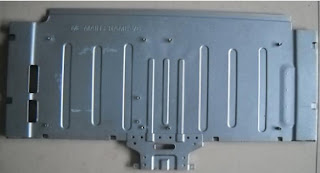

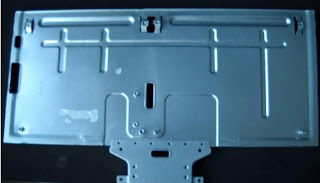

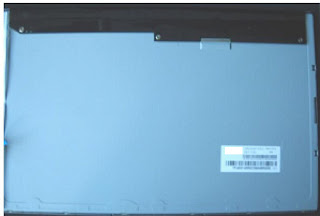

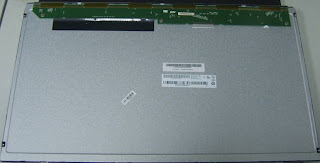

The PANEL and MAIN FRAME. T942WE
![]()
![]()
T2242WE
![]()
![]()
T2442E
![]()
![]()
![]()

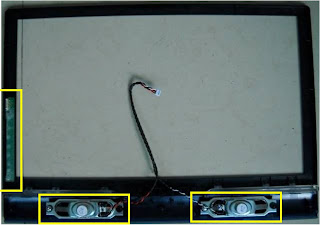

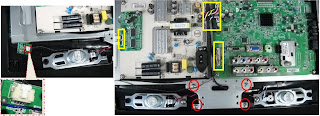

Remove the KEY BOARD and SPEAKERS.
